Edison Lighting Group

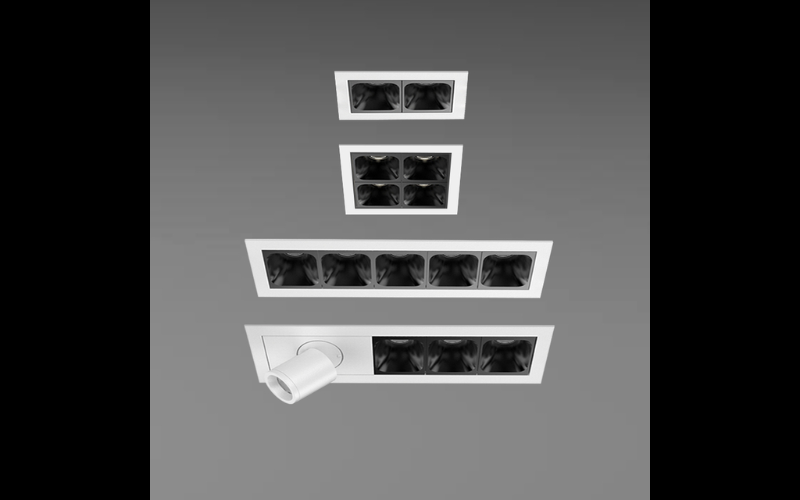

ED MINI+.
Configure
Add to project
RESOURCES
DESCRIPTION
- Architectural luminaire with direct distribution.
- Light source: COB LED.
- Mini Optic provides superior lighting distribution with precise low-glare illumination.
- Offered with Medium 24°/19UGR or Wide 40°/19UGR internal optics.
- Suitable for recessed installation into drywall.
- Comes with a standard black or white finish.
- Spotlight available with 355° rotation & 90° pivot.
- COB LED is rated for 60,000 hrs. L80 with +90 CRI.
- Has a proven record in office, commercial and retail installations.
- Custom modifications are available.
- ED luminaires are certified to CSA and UL standards.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 1.77"2.95"L: 2.75"2.95"5.98"
- Light SourceLED
- CCT/Color3000K3500K4000K
- CRI90
- Watt(Approx)5 W8 W10 W12 W
- Lumens(Approx)320 Lm700 Lm650 Lm850 Lm
- OpticsDirectMediumFlood
- AdjustableAdjustable
- DimmingDim to 3-10%Dim to 1%Non-Dim0-10VDALI
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesETL
- Environment
- Mounting TypeCeiling RecessedDrywall
- HousingNew Construction
- Housing Depth2.36 ''
