Focal Point (Legrand)
FM8AL. Akeso™ Peak LED PERFORMANCE Ambient only.
Configure
Add to project
RESOURCES
DESCRIPTION
Design

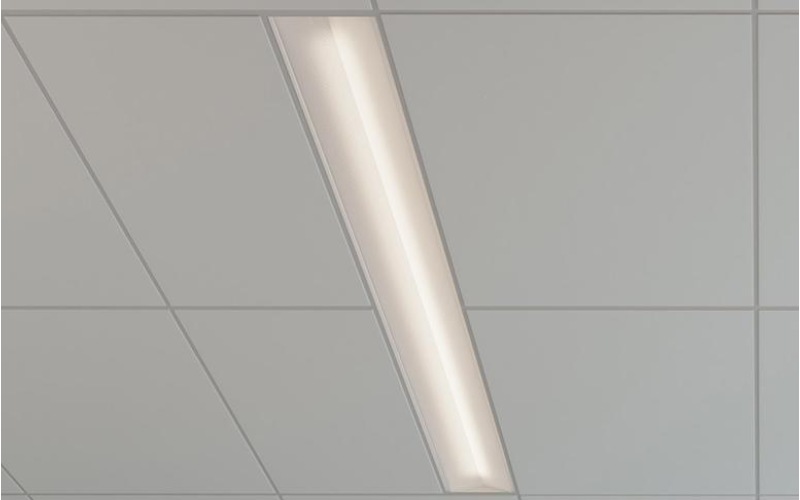

8" wide x 4' long recessed LED healthcare luminaire designed to support patient comfort and physician tasks.
Quick electrical connection and below ceiling driver access allow for easy serviceability in healthcare facilities.
Smooth acrylic lens with a silicone gasket for easy wipe down and secure fit for protection from contamination in medical settings.
Performance
Peaked acrylic lens imparts visual appeal and is designed to stand up to rigorous cleaning and maintenance routines.
Meets the Illuminating Engineering Society (IES) Lighting for Hospitals and Healthcare Facilities (ANSI/IES RP-29-16) standards.
Application

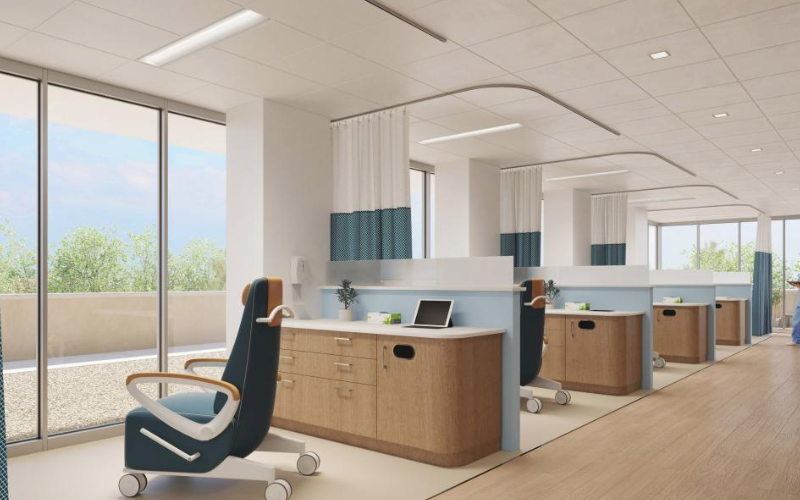

Designed for healthcare lighting: hospitals, medical facilities, clinical laboratories, corridors, reception areas, waiting rooms, respite areas, rehabilitation and therapy, areas, dental suites, etc.
8" wide x 4' long recessed LED healthcare luminaire designed to support patient comfort and physician tasks.
Quick electrical connection and below ceiling driver access allow for easy serviceability in healthcare facilities.
Smooth acrylic lens with a silicone gasket for easy wipe down and secure fit for protection from contamination in medical settings.
Performance
Peaked acrylic lens imparts visual appeal and is designed to stand up to rigorous cleaning and maintenance routines.
Meets the Illuminating Engineering Society (IES) Lighting for Hospitals and Healthcare Facilities (ANSI/IES RP-29-16) standards.
Application
Designed for healthcare lighting: hospitals, medical facilities, clinical laboratories, corridors, reception areas, waiting rooms, respite areas, rehabilitation and therapy, areas, dental suites, etc.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 8"L: 4 Ft
- Light SourceLED
- CCT/Color3000K3500K4000K5000K
- CRI80 90
- Watt(Approx)17.43 W22.48 W27.11 W31.97 W37 W42.12 W
- Lumens(Approx)2000 Lm2500 Lm3000 Lm3500 Lm4000 Lm4500 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%Step DimNon-Dim0-10VDALILutron Hi-lume EcoSystem (LDE1)
- Controls/Network
- Power/VoltageIntegralUNV 120-277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance61000 h
- CertificatesUL/CULNSFBAA
- EnvironmentAntimicrobial FinishIP65Healthcare General
- Mounting TypeCeiling RecessedDrywallT-Grid CeilingSlot T-Grid Ceiling
- HousingNew ConstructionChicago Plenum
- Housing Depth5 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeFM8AL-PK
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
