Juno (Acuity Brands Lighting)

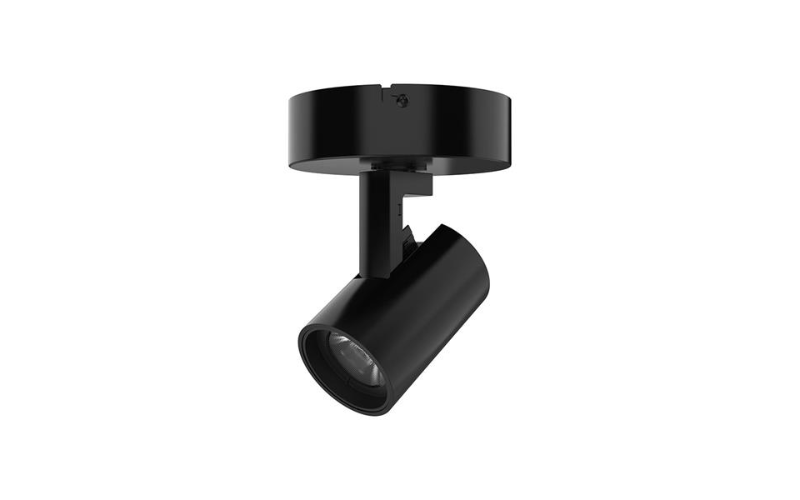

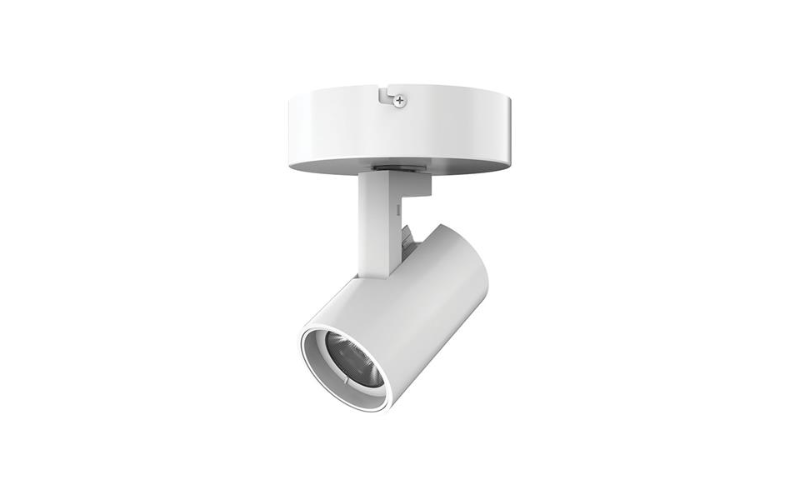

R608L CPY. TRAC-LITES 15W Integral Driver LED Cylinder Trac Head with Direct Canopy Mount Option.
Configure
Add to project
RESOURCES
DESCRIPTION
Modern with its clean geometric design, the Juno Trac-Lites™ R608L Series with Canopy Mount option blends seamlessly within any environment. Delivering up to over 1600 lumens while consuming only 15 watts and offering 4 CCT’s to choose from, this cylinder fixture offers the flexibility and performance you require with uncompromised quality. These fixtures can be mounted on horizontal surfaces (ceilings) or vertical surfaces (walls) or any orientation in between. Ideally suited to help with energy code compliance, the CPY option also enables 120V, 277V, or 347V operation and enables phase or 0-10V dimming. Specifying projects which demand simplicity and performance is easy with the new R608L LED cylinder from Juno.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 3"L: 4 3/4"H: 3"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI80 90
- Watt(Approx)15.6 W
- Lumens(Approx)1666 Lm1668 Lm1584 Lm1599 Lm
- OpticsDirectNarrowMediumFloodWide Flood
- AdjustableAdjustable
- DimmingNon-Dim
- Controls/Network
- Power/VoltageIntegral120V277V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesUL/CULBAA
- EnvironmentDamp
- Mounting TypeTrack/BuswayCeiling Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeR608L-CPY
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
