Litecontrol (Current)

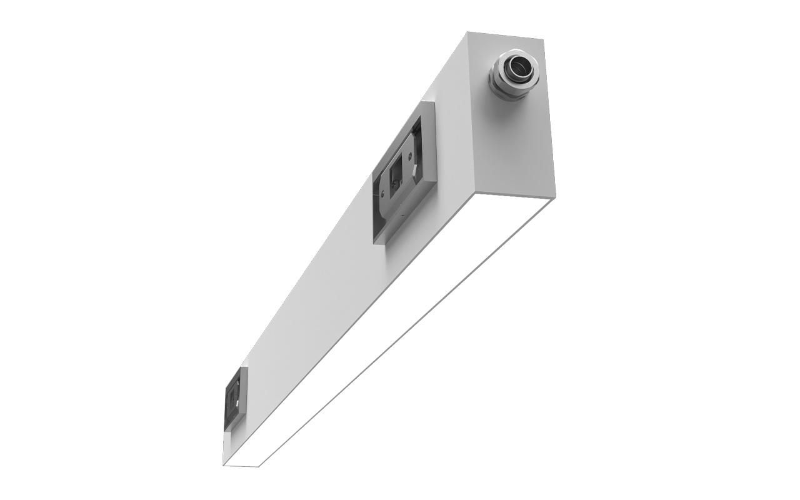

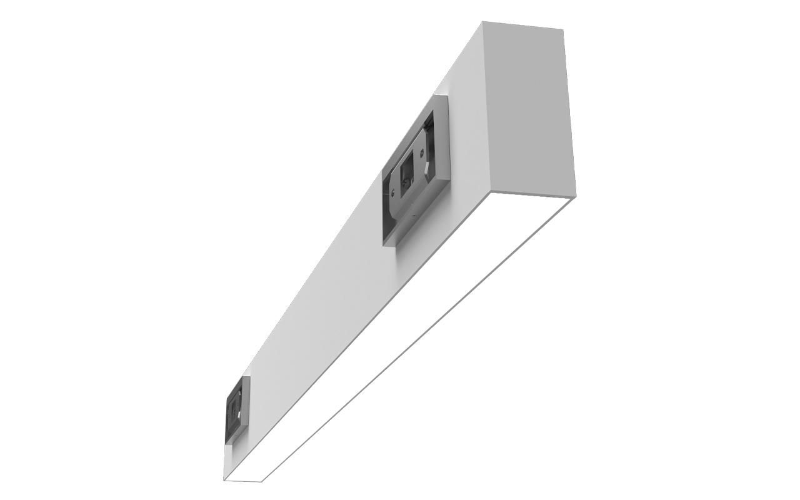

2W-W-D. MOD WET 2'' LED WALL DIRECT.
Configure
Add to project
RESOURCES
DESCRIPTION
- Variable Intensity technology provides a range ofspecifiable outputs and resulting fixture wattages
- 2 SDCM color consistency
- Welded end cap design creates seamless housing appearance
- Current’s patented TriGain® phosphor delivers 90 CRI color quality at 80 CRI efficacy.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2.16"L: 2 Ft3 Ft4 Ft5 Ft6 Ft8 FtRun length (Ft)H: 4.5"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K5000KTunable White
- CRI90
- Watt(Approx)2.5 W/Ft4.1 W/Ft6.2 W/Ft10.2 W/Ftcustom
- Lumens(Approx)300 Lm/Ft500 Lm/Ft750 Lm/Ft1250 Lm/Ftcustom
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%Non-Dim0-10VDALILutron Hi-lume EcoSystem (LDE1)
- Controls/Network
- Power/VoltageIntegralUNV 120-277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance60000 h
- CertificatesCSAIBEWBAA
- EnvironmentWet
- Mounting TypeWall Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead time2W-W-D
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
