Lithonia Lighting (Acuity Brands Lighting)

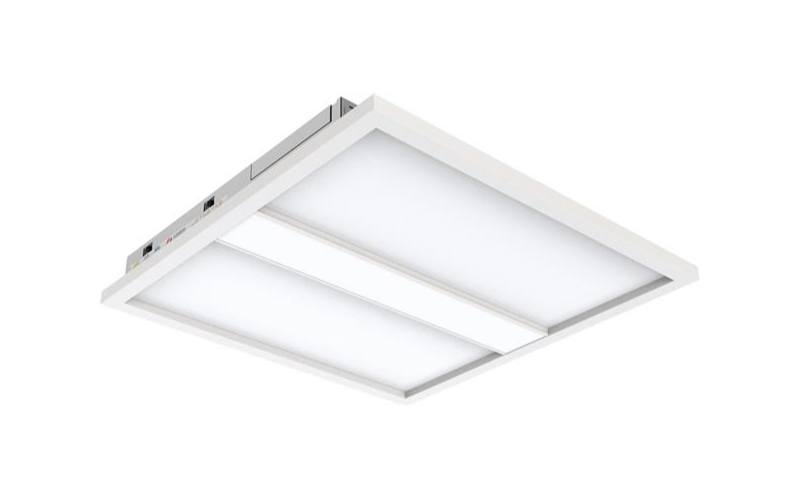

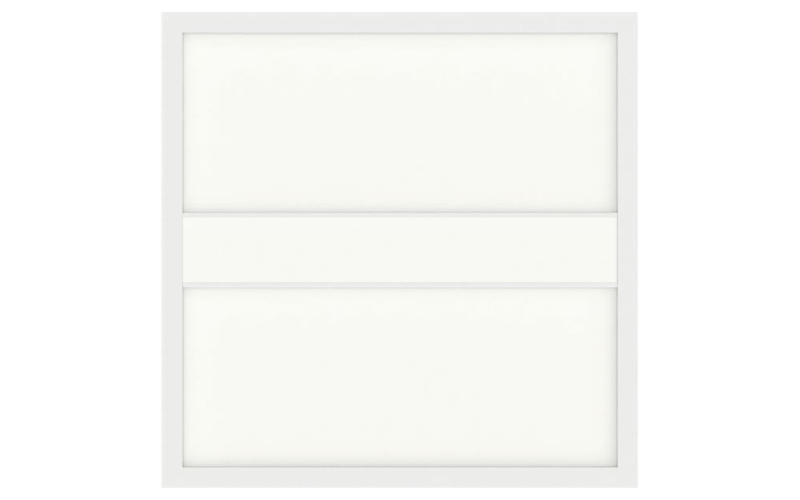

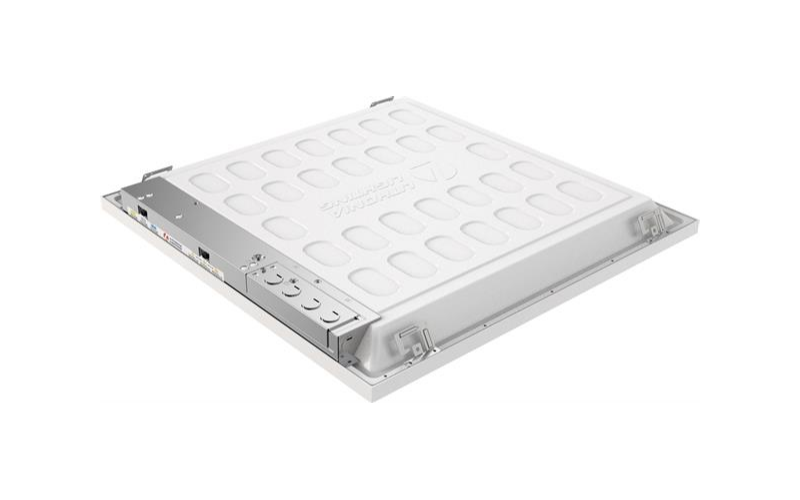

CPX3P. Three Pane Panel 2' x 2' and 2' x 4'.
Configure
Add to project
RESOURCES
DESCRIPTION
Designed to Look Better. Built to Perform. Priced to Win.
The CPX3P by Lithonia Lighting® offers a modern twist on the traditional LED flat panel, featuring a distinctive three-panel light design that enhances visual appeal while maintaining uniform illumination. The CPX3P delivers excellent optical uniformity, high efficacy, and a clean, contemporary appearance while leveraging the proven reliability of the CPX family.
The CPX3P by Lithonia Lighting® offers a modern twist on the traditional LED flat panel, featuring a distinctive three-panel light design that enhances visual appeal while maintaining uniform illumination. The CPX3P delivers excellent optical uniformity, high efficacy, and a clean, contemporary appearance while leveraging the proven reliability of the CPX family.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 23.7"L: 23.7"47.8"
- Light SourceLED
- CCT/Color3500K4000K5000KField Select CCT
- CRI80
- Watt(Approx)17.2-31.6 W29.7-46 Wswitchable
- Lumens(Approx)2360-4243 Lm4138-6317 Lmswitchable
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance60000 h
- CertificatesCSADLC*
- EnvironmentDamp
- Mounting TypeCeiling RecessedT-Grid Ceiling
- HousingIC
- Housing Depth2.2 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeCPX3P
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
