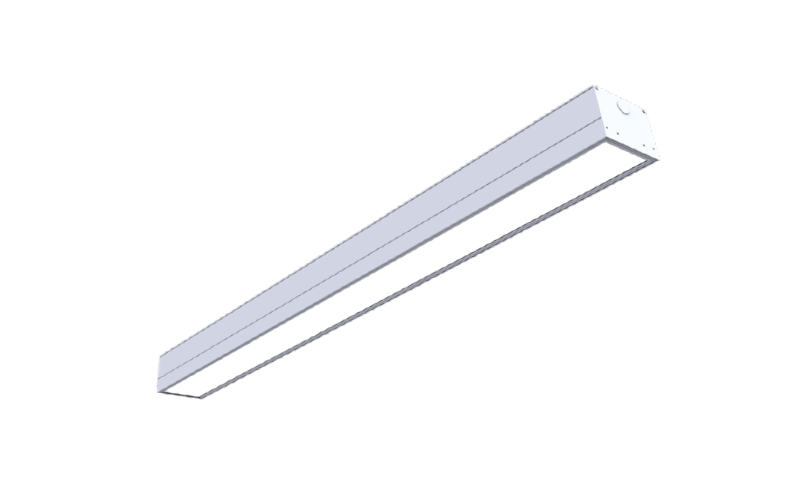

CCL-MRI. COMPLETECARE MRI LINEAR SERIES.
Configure
Add to project
RESOURCES
DESCRIPTION
Intended to provide general lighting for the MRI environment
Non-ferrous construction and hardware
Remote mounted power supply enclosures standard with optional EMI filter availability
Available in 2’ - 8’ lengths
Up to 1125 lumens/ft.
Certified to UL standards by Intertek Testing Laboratory. IP65 rated per IEC60598. NSF2/Non-Food Zone Listed, IK10 Listed per IEC60068-2-75. IC-Rated housing per UL 1598
Independently tested and certified to meet the MIL Spec 461G Fixed Navy/Air Force for Radiated and Conducted emissions
This product is Made in America and complies with the Buy American Act (BAA), and the Build America, Buy America Act (BABAA)
Non-ferrous construction and hardware
Remote mounted power supply enclosures standard with optional EMI filter availability
Available in 2’ - 8’ lengths
Up to 1125 lumens/ft.
Certified to UL standards by Intertek Testing Laboratory. IP65 rated per IEC60598. NSF2/Non-Food Zone Listed, IK10 Listed per IEC60068-2-75. IC-Rated housing per UL 1598
Independently tested and certified to meet the MIL Spec 461G Fixed Navy/Air Force for Radiated and Conducted emissions
This product is Made in America and complies with the Buy American Act (BAA), and the Build America, Buy America Act (BABAA)
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 3.75"L: 2'3'4'6'8'H: 4.13"4.125"
- Light SourceLED
- CCT/Color3000K3500K4000KTunable White
- CRI80 90
- Watt(Approx)5.5 W/Ft8.3 W/Ft12.5 W/Ftcustom
- Lumens(Approx)500 Lm/Ft750 Lm/Ft1125 Lm/Ftcustom
- OpticsDirectGeneral DiffusedAsymmetric/Wash
- Adjustable
- DimmingDim to 3-10%Dim to 1%0-10VDALI
- Controls/Network
- Power/VoltageIntegralUNV 120-277V120V277V347V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesETLMade in USABAA
- EnvironmentAntimicrobial FinishMRIIP65Healthcare General
- Mounting TypeWall RecessedDrywallTrimless Drywall
- Housing
- Housing Depth
