New Star Lighting

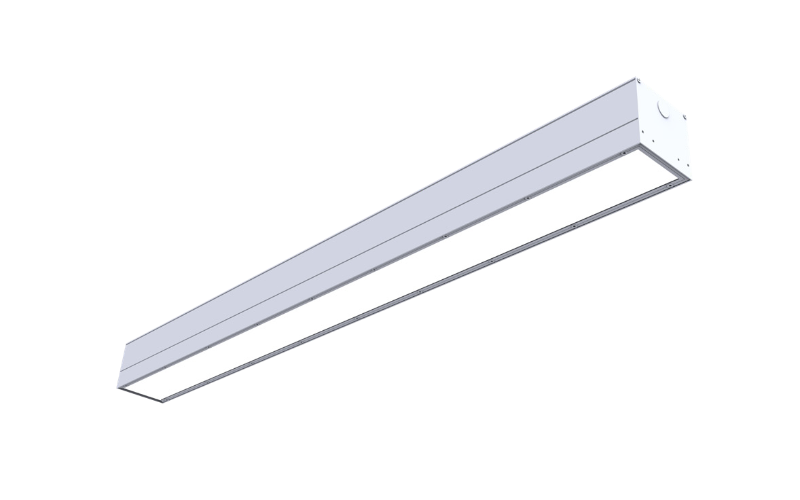

SCL. STARCLEAN LINEAR SERIES.
Configure
Add to project
RESOURCES
DESCRIPTION
Intended for Cleanrooms, BSL Labs, Hi-Tech Manufacturing, Laboratory, Food Processing Facilities, Commercial Kitchens, and more
Available in 2’ - 8’ lengths
One piece die-formed aluminum doorframe supplied with tool-less fasteners and no visible room side hardware
Extruded Aluminum housing and gasketed end caps for optional thru-wiring for end-to-end mounting
Up to 1125 lumens per foot with custom tuning of outputs optional in provided in Symmetric and Asymmetric wall wash distributions
Optional Grid, Flange or Trim-less mounting
This product is Made in America and complies with the Buy American Act (BAA), and the Build America, Buy America Act (BABAA)
Available in 2’ - 8’ lengths
One piece die-formed aluminum doorframe supplied with tool-less fasteners and no visible room side hardware
Extruded Aluminum housing and gasketed end caps for optional thru-wiring for end-to-end mounting
Up to 1125 lumens per foot with custom tuning of outputs optional in provided in Symmetric and Asymmetric wall wash distributions
Optional Grid, Flange or Trim-less mounting
This product is Made in America and complies with the Buy American Act (BAA), and the Build America, Buy America Act (BABAA)
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 3.75"L: 2'3'4'6'8'H: 4.13"4.125"
- Light SourceLED
- CCT/ColorAmber (WildLife)3000K3500K4000KTunable WhiteRed
- CRI80 90
- Watt(Approx)5.5 W/Ft8.3 W/Ft12.5 W/Ftcustom
- Lumens(Approx)500 Lm/Ft750 Lm/Ft1125 Lm/Ftcustom
- OpticsDirectGeneral DiffusedAsymmetric/Wash
- Adjustable
- DimmingDim to 3-10%Dim to 1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALI
- Controls/Network
- Power/VoltageIntegralUNV 120-277V120V277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance50000 h
- CertificatesETLMade in USABAA
- EnvironmentClean RoomAntimicrobial FinishIP65Food Processing
- Mounting TypeWall RecessedDrywallTrimless Drywall
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeSCL
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
