PureEdge Lighting

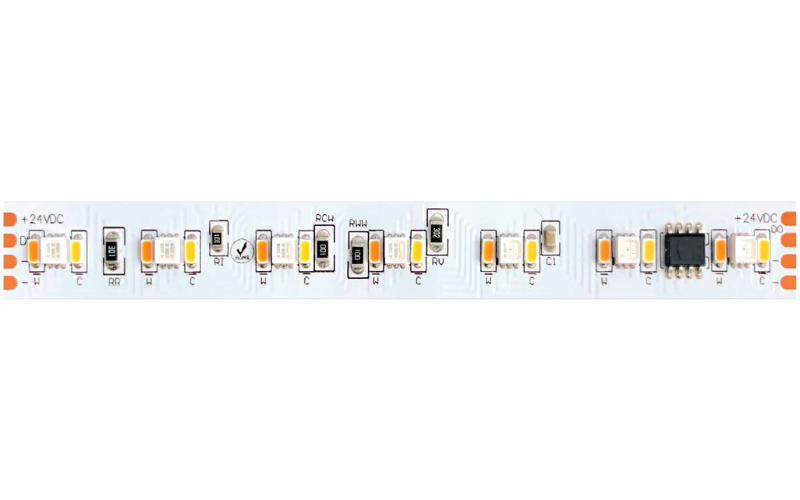

SS5. DIGITAL SOFT STRIP, RGB + TUNABLE WHITE 24VDC WITH PINS AND LEADS.
Configure
Add to project


RESOURCES
DESCRIPTION
PureEdge's RGB+Tunable White White (SS5) provides dynamic color effects with red, green, blue plus two white color temperatures. Our color-changing LED strip provides bright, continuous light, our focus on chromacity quality provides a balanced output across the color gamut, allowing the creation of millions of beautiful colors and pure white. The flexible strip is sold in 1' increments up to 20' with cutting increments every 4". At 5 watts per foot, RGB+Tunable White can be controlled using a compatible 24 volt DC power supply with an integrated DMX to DDP decoder as well as direct IP integration. Includes 5 year pro-rated warranty.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 0.47"L: Run length (Ft)
- Light SourceLED
- CCT/ColorTunable White & Colors
- CRI
- Watt(Approx)5 W/Ft
- Lumens(Approx)
- OpticsDirectGeneral Diffused
- Adjustable
- Dimming
- Controls/Network
- Power/VoltageRemote
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesETLRoHS
- EnvironmentDamp
- Mounting TypeSurface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
