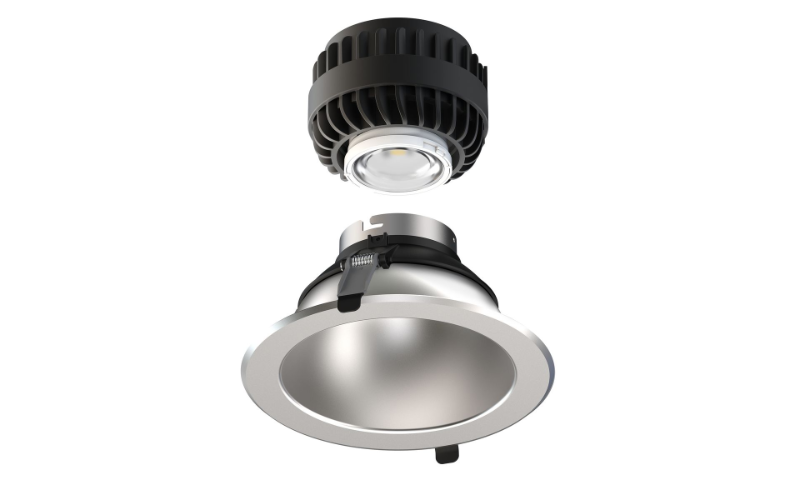

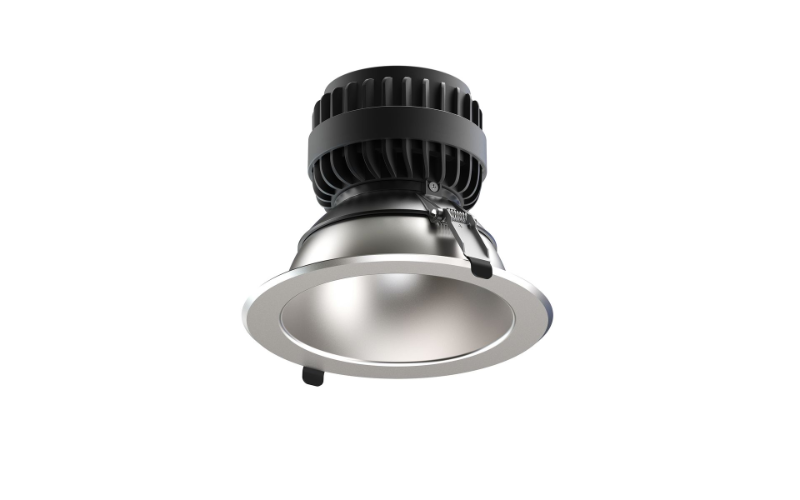

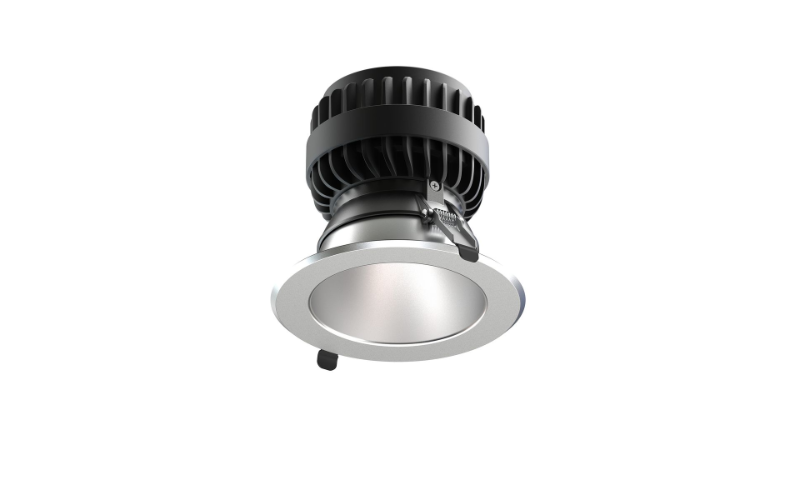

LBRP. LITEBOX PRO DOWNLIGHT.
Configure
Add to project




RESOURCES
DESCRIPTION
- 4”, 6" and 8" apertures delivering 850 to 2900 lumensм
- aluminum anodized or white trim, 55° cutoff
- New construction housing accessories available
- Optional Emergency Battery Backup (EMR) modules and accessory kit with remote test switch
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 6"5.86"7.36"7.71"9.25"9.37"L: 5.86"6"7.36"9.25"7.71"9.37"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K5000KField Select CCT
- CRI90
- Watt(Approx)customswitchable
- Lumens(Approx)850 Lm1150 Lm1450 Lm1600 Lm1900 Lm2500 Lmcustomswitchable
- OpticsDirectWide Flood
- Adjustable
- DimmingDim to 1%0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance54000 h
- CertificatesETL
- EnvironmentWet
- Mounting TypeCeiling RecessedRetrofitDrywallT-Grid Ceiling
- HousingNew ConstructionRemodelAir Tight
- Housing Depth5.35 ''5.54 ''5.87 ''5.91 ''6.05 ''6.70 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
