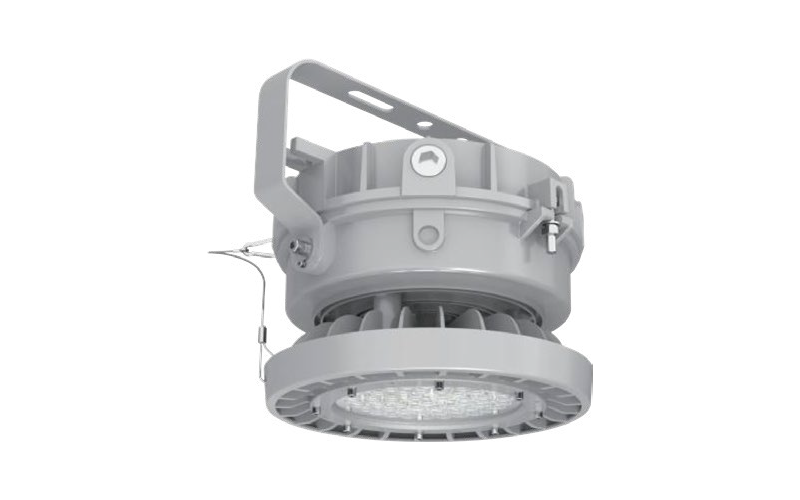

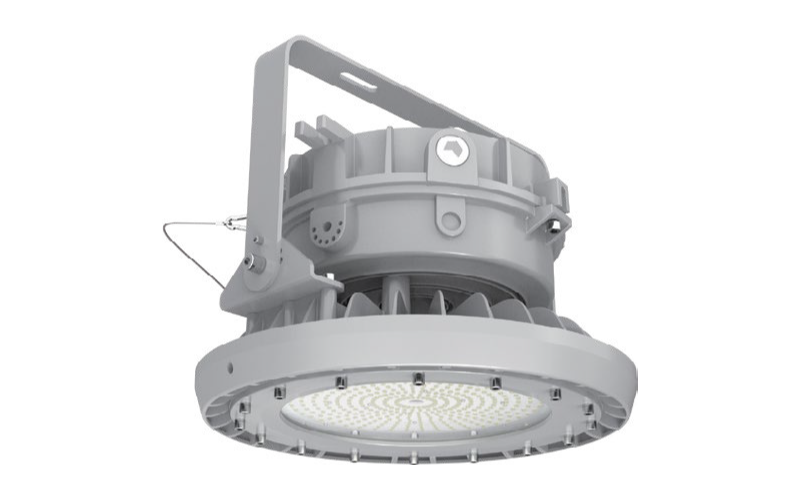

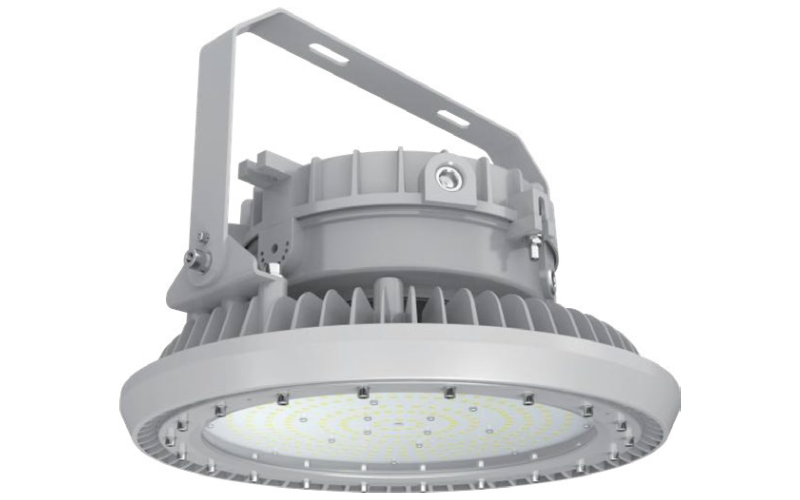

HJER. The COACH Hazardous Location LED Lighting.
Configure
Add to project
RESOURCES
DESCRIPTION
- Hazardous Location lighting with selectable CCT and power.
- Ideal choice for high moisture, dirty, corrosive, windy, snowy, high temperature or high vibration environments (Vibration 3G certified).
- IK10 rated when configured with a wire guard, IK08 without wire guard.
- Conveniently set color temperature and wattage with DIP switches.
- Several beam angle, lens and mounting options available making the Coach™ an extremely versatile HazLoc solution.
- 1-10V Dimming.
- 500 hours salt spray test passed.
- 304 stainless steel hardware.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 10.67”14.67"18.9"L: 10.67”14.67"18.9"H: 7.46"8.52"8.69"
- Light SourceLED
- CCT/Color4000K5000K6500KField Select CCT
- CRI70
- Watt(Approx)60-100 W120-200 W200-300 W400 W500 Wswitchable
- Lumens(Approx)10100-16500 Lm20400-32100 Lm35400-53700 Lm66000 Lm82500 Lmswitchable
- OpticsDirectFloodWide FloodType IIType IIIType V
- AdjustableAdjustable
- DimmingDim to 1%0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V277VUNC 347-480V
- Integral Emergency
- Lumen Maintenance100000 h
- CertificatesUL/CUL
- EnvironmentIP66MarineHazardous
- Mounting TypePendantCeiling SurfaceWall Arm/CantileverBracketsGround Arm/Stanchion
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeHJER
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
