Solid State Luminaires

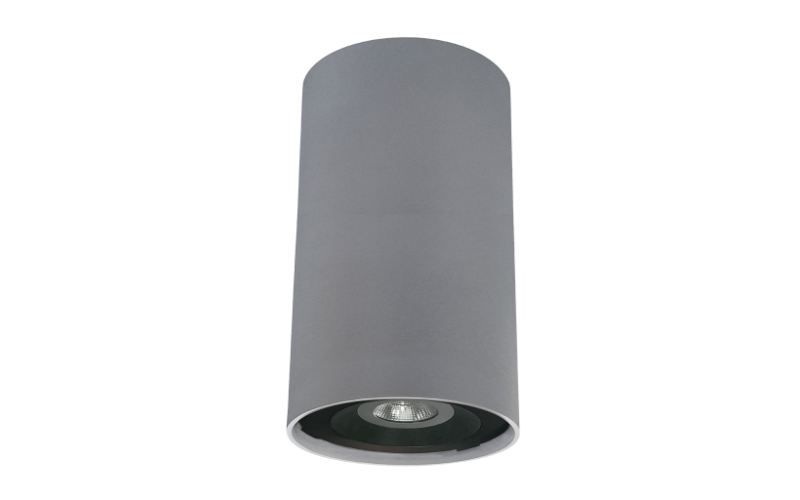

SSC8. 8'' Interior Cylinder Series Premium Drivers without Battery Backup.
 Configure
 Add to project
DESCRIPTION
SSC8 Series Cylinders are interior rated and engineered to combine maximum performance with a sleek style. Standard polyester powder coat finishes include black, bronze, silver and white with custom or RAL colors also available. By developing this clean new look in a high-powered interior luminaire with design, power and the ultimate flexibility as the criteria, our engineering team has created the most versatile cylinder series on the market today!
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 7.35"
    L: 7.35"
    H: 8"10"12"14"16"18"
  • Light Source
    LED
  • CCT/Color
    2700K2700K Dim to Warm3000K3500K4000K5700KTunable White
  • CRI
    93 83
  • Watt(Approx)
    22 W27 W33 W38 W44 W47 W49 W55 W60 W66 W74 W82 W
  • Lumens(Approx)
    2000 Lm2500 Lm3000 Lm3500 Lm4000 Lm4500 Lm5000 Lm5500 Lm6000 Lm6500 Lm7000 Lm7500 Lm
  • Optics
    DirectNarrowMediumFloodWide FloodAsymmetric/Wash
  • Adjustable
    Adjustable
  • Dimming
    Dim to 1%Dim to <1%0-10VLutron Hi-lume EcoSystem (LDE1)eldoLED SOLO DALIeldoLED SOLO 0-10VDMX
  • Controls/Network
  • Power/Voltage
    IntegralUNV 120-277V
  • Integral Emergency
  • Lumen Maintenance
    70000 h
  • Certificates
    ETLMade in USARoHS
  • Environment
    Damp
  • Mounting Type
    PendantCeiling SurfaceWall SurfaceYoke
  • Housing
  • Housing Depth
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
