Visa Lighting

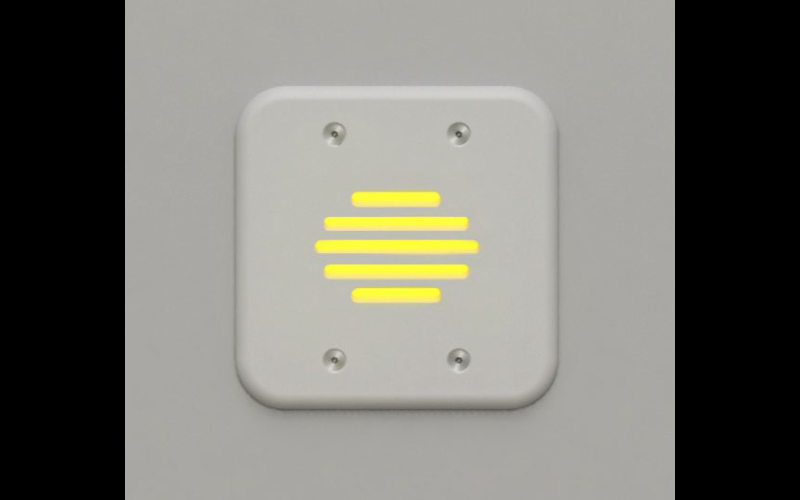

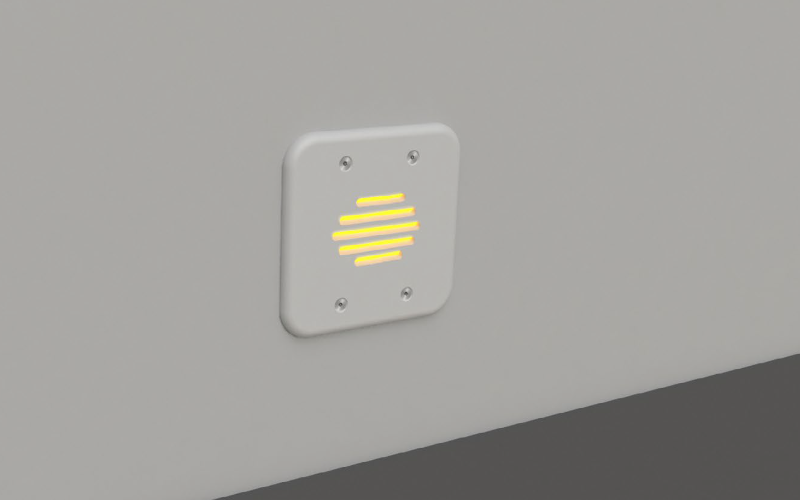

CB9000. TRACE Rounded Square Nightlight/Steplight.
Configure
Add to project
RESOURCES
DESCRIPTION
The Trace Nightlight is a rounded square, ligature-resistant nightlight and step light ideal for healthcare and behavioral health / high-abuse spaces. The machined aluminum faceplate with high-impact polycarbonate lens provides durable, safe, and reliable performance. Optional antimicrobial coating helps support infection control strategies in healthcare environments. Optional tamper-resistant screws are offered for use in behavioral health / high abuse environments.
- IP65 rated
- IK10 impact resistant
- ETL listed for damp locations
- Available in 2700K, Red, Green, Blue & Amber light sources
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 1/4"L: 4 3/4"H: 4 3/4"
- Light SourceLED
- CCT/Color2700KYellow/AmberRedGreenBlue
- CRI90
- Watt(Approx)1 W
- Lumens(Approx)30 Lm12 Lm40 Lm13 Lm34 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingNon-Dim
- Controls/Network
- Power/VoltageIntegral120V220-240V
- Integral Emergency
- Lumen Maintenance
- CertificatesETLADABAA
- EnvironmentAntimicrobial FinishDampIP65Healthcare General
- Mounting TypeWall RecessedDrywall
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeCB9000
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
