Visa Lighting

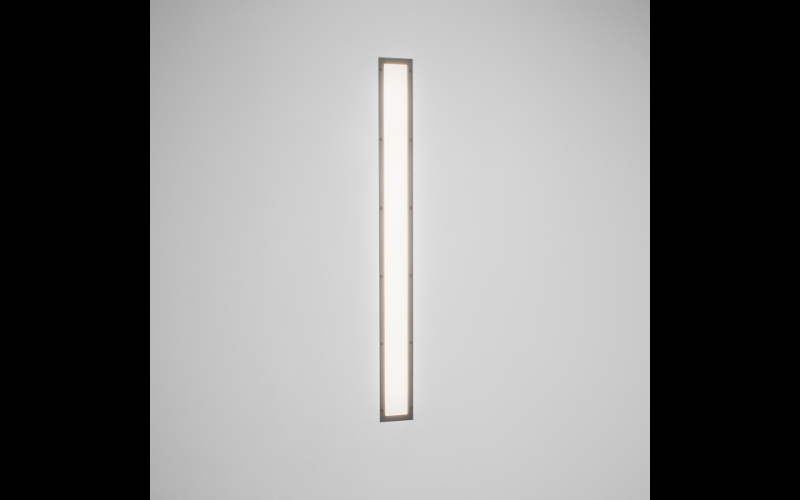

CV1680-5. VISAGE Behavioral Health.
Configure
Add to project
RESOURCES
DESCRIPTION
With a pure, luminous diffuser, multiple length options, and a shallow recessed depth, Visage is a fundamental luminaire that fits anywhere throughout the behavioral health/high abuse facility. Visage can be used to fill general spaces with ambient light.
- Integral driver
- Recessed housing
- Housing is fully sealed from room side
- Sheetrock/Drywall Installation only, not suited for grid installation
- Housing integrates with drywall ceilings via mud flange
- High-abuse lens and frame features high-impact clear polycarbonate secured with tamper-resistant fasteners
- 90+CRI Standard
- BAA (Buy American Act) and BABA (Build American, Buy America) compliant
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 4 5/8”L: 59 1/8”
- Light SourceLED
- CCT/Color3000K3500K4000KTunable WhiteRGBW
- CRI90 80
- Watt(Approx)29 W46 W
- Lumens(Approx)605 Lm2350 Lm2400 Lm2450 Lm3500 Lm3650 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%0-10VDALI
- Controls/Network
- Power/VoltageIntegralUNV 120-277V347V
- Integral Emergency
- Lumen Maintenance
- CertificatesETLADABAA
- EnvironmentIP65Healthcare General
- Mounting TypeCeiling RecessedWall RecessedDrywall
- HousingNew ConstructionICChicago Plenum
- Housing Depth4 1/8 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeCV1680-5
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
