WG-140RPTDL. 5.5 In. ProTools Downlight Round Cylinder. by Whitegoods, Inter-Lux

Whitegoods (Inter-Lux)

WG-140RPTDL. 5.5 In. ProTools Downlight Round Cylinder.

Configure

Add to project

Whitegoods. WG-140RPTDL. 5.5'' ProTools Downlight Round Cylinder.

RESOURCES

DESCRIPTION

Part of a complete family of cylinder downlights for surface or suspended applications.

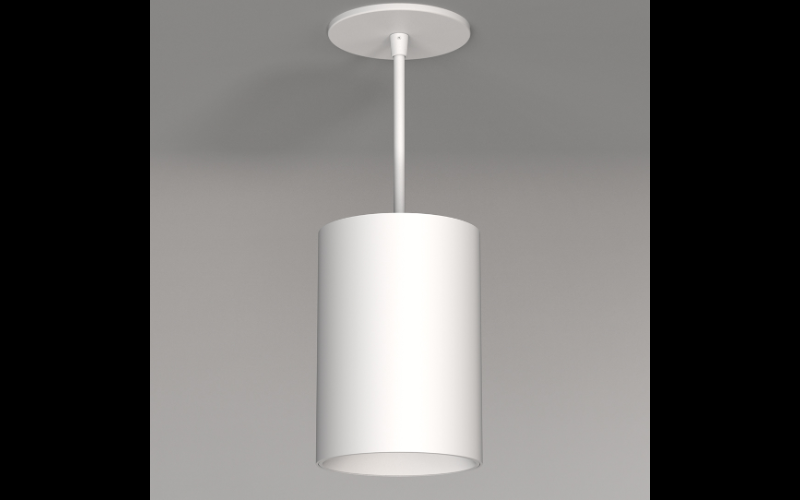

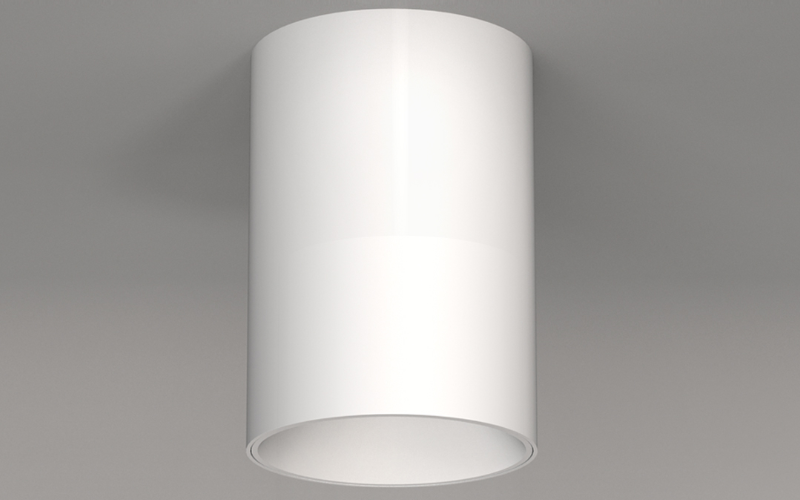

5.5″ round ceiling mounted cylinder downlight with wide range of beam angles and lens options available to fit a multitude of applications.
High lumen output and excellent color rendition for all applications. Efficacy up to 150 lumens per watt (delivered).
UGR < 19 for some configurations to comply with WELL requirements.
WL Wet Location (IP65) optional.
92+ CRI, 2 step MacAdam Ellipse LEDs standard for Static White and Warm Dim (1800K – 3000K). 95+ CRI optional for Static White.
Long life L70 66,000 hrs (Warm Dim 55,000 hrs) based on LM-80 & TM-21 applicable test data.
Constant current drivers.
0-10V, Phase, Lutron, DALI and DMX dimming options available.
5 Year warranty.

MORE DESCRIPTION

SPECIFICATIONS

Dimensions
W: 5.5"
L: 5.5"
H: 7.9"
Light Source
LED
CCT/Color
2700K3000K3000K Dim to Warm3500K4000K
CRI
92 95
Watt^(Approx)
6.3 W9 W12 W
Lumens^(Approx)
882 Lm1260 Lm1680 Lm
Optics
DirectNarrowMediumFloodWide Flood
Adjustable

Dimming
Dim to 1%Dim to <1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VLutron Hi-lume Premier Eco (PEQ0)eldoLED ECO DALIeldoLED SOLO DMX
Controls/Network
Power/Voltage
IntegralRemoteUNV 120-277V
Integral Emergency
Lumen Maintenance
66000 h55000 h
Certificates
ETL
Environment
DampIP65
Mounting Type
PendantCeiling Surface
Housing
Housing Depth

SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
