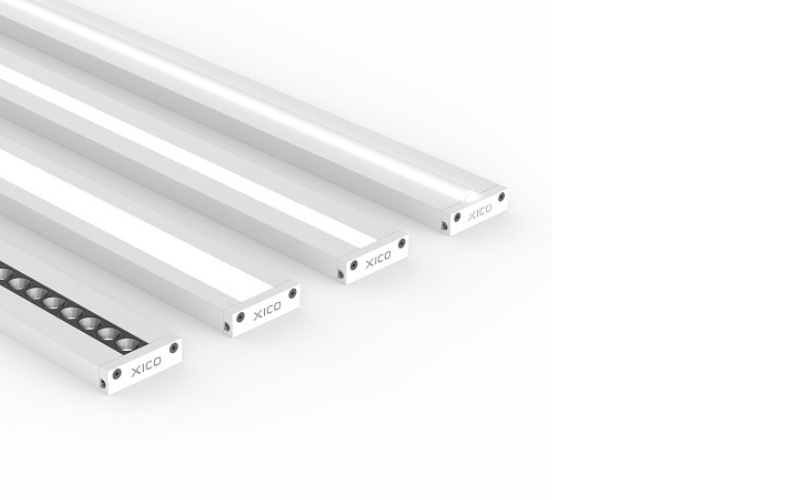

ESM140. EDGESlim140 0.5'' x 1.4'' Low-Profile Flat LED Linear.
 Configure
 Add to project
DESCRIPTION
The EDGESlim140 surface-mounted fixture from XICO is an innovative ultra-slim and compact LED linear product providing best-in-class efficiency and beam control options. The EDGESlim140 is designed to be specification-grade with high lumen per foot, high CRI, and circadian options. EDGESlim140 is powered by a high performance LED light engine with fully customizable choices for lumen output, CCT, and CRI. Based upon unique micro-optical technology; a key feature of the EDGESlim is that it delivers a wide range of beam distributions while achieving high efficacy, energy-saving performance. EDGESlim products are available with a range of accessories and mounting options.
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 1.4"
    L: 1 Ft2 Ft3 Ft4 Ft6 Ft8 FtRun length (Ft)
    H: 0.5"
  • Light Source
    LED
  • CCT/Color
    2700K3000K3000K Dim to Warm3500K4000KTunable White
  • CRI
    80 90 95
  • Watt(Approx)
    2.6 W/Ft3.7 W/Ft5.6 W/Ft7.5 W/Ftcustom
  • Lumens(Approx)
    350 Lm/Ft500 Lm/Ft750 Lm/Ft1000 Lm/Ftcustom
  • Optics
    DirectFloodWide FloodGeneral DiffusedAsymmetric/WashBatwing
  • Adjustable
  • Dimming
    Dim to 3-10%Dim to 1%Dim to <1%Non-DimTRIAC/Forward/Leading0-10VDALILutron Hi-lume EcoSystem (LDE1)DMX
  • Controls/Network
    Wireless DimmingIntegral Sensor
  • Power/Voltage
    IntegralUNV 120-277V347V
  • Integral Emergency
  • Lumen Maintenance
    50000 h
  • Certificates
    ETLRoHSDeclare
  • Environment
    Damp
  • Mounting Type
    Ceiling SurfaceCeiling RecessedT-Bar
  • Housing
  • Housing Depth
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
