XICO
NSQ65-S. NANOSquare65 0.65'' Compact Linear LED Surface Mount.
Configure
Add to project
RESOURCES
DESCRIPTION

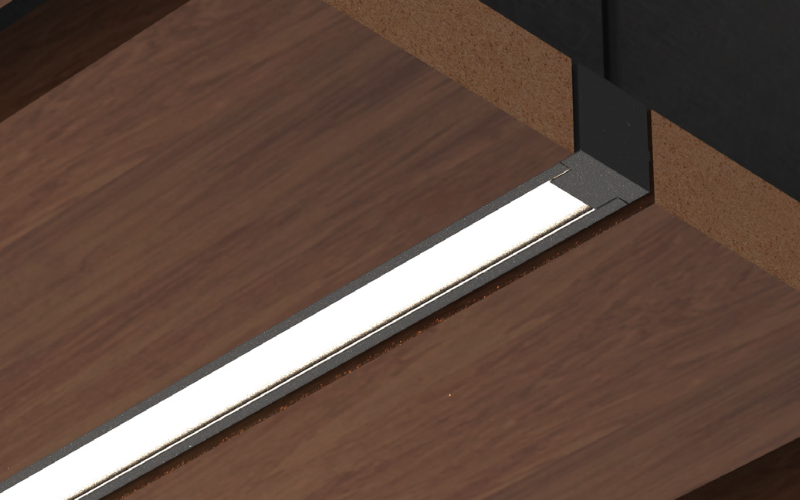

NANOSquare65 Surface is a 0.65″ square surface-mounted linear LED luminaire designed to be mounted on ceilings and between panels in popular wood grille systems. Delivering SmartBeam® performance in an ultra-compact form, it utilizes a remote driver to minimize visual clutter, while achieving up to 1,000 lm/ft and 135 lm/W performance. The system supports a wide variety of color temperatures, with a choice of optics and 8 direct beam distributions.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 0.65"L: 2 Ft4 Ft6 Ft8 FtRun length (Ft)H: 0.65"
- Light SourceLED
- CCT/Color2700K3000K3000K Dim to Warm3500K4000KTunable White
- CRI80 90 95
- Watt(Approx)3.2 W/Ft4.6 W/Ft6.9 W/Ft9.2 W/Ftcustom
- Lumens(Approx)350 Lm/Ft500 Lm/Ft750 Lm/Ft1000 Lm/Ftcustom
- OpticsDirectFloodWide FloodGeneral DiffusedAsymmetric/WashBatwing
- Adjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%Non-DimTRIAC/Forward/Leading0-10VDALILutron Hi-lume EcoSystem (LDE1)DMX
- Controls/NetworkWireless DimmingIntegral Sensor
- Power/VoltageIntegralUNV 120-277V347V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesUL/CULRoHSDeclare
- EnvironmentDamp
- Mounting TypeCeiling SurfaceCeiling RecessedT-BarWood
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
