3G Lighting

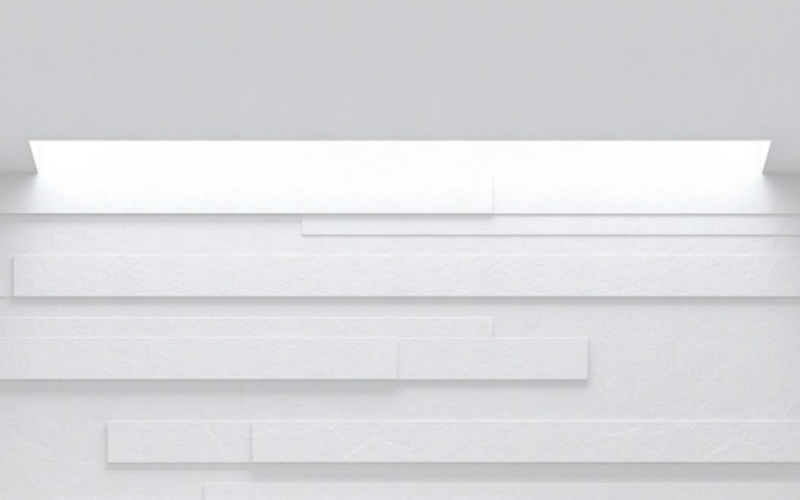

3G-4RGZ. WALL GRAZER.
Configure
Add to project
RESOURCES
DESCRIPTION
- Narrow 3.5" aperture with one piece extruded aluminum housing
- Adjustable LED profile ensures textured surfaces are evenly illuminated
- Individual or continuous runs in multiple run configurations
- Suitable for drywall, grid, wood, and various architectural ceilings
- Multiple lumen output options with performance up to 121 lumens per watt
- 1% dimming standard with several integral driver options
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 3.43"L: 1 Ft2 Ft3 Ft4 Ft5 Ft6 Ft7 Ft8 Ft9 Ft10 Ft11 Ft12 FtMore than 12 FtRun length (Ft)
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI83 93
- Watt(Approx)2 W/Ft4.3 W/Ft6.7 W/Ft8.9 W/Ftcustom
- Lumens(Approx)250 Lm/Ft500 Lm/Ft750 Lm/Ft1000 Lm/Ftcustom
- OpticsDirectGrazing
- AdjustableAdjustable
- DimmingDim to 1%Dim to <1%0-10VLutron Hi-lume EcoSystem (LDE1)eldoLED ECO DALIeldoLED SOLO 0-10VeldoLED SOLO DMX
- Controls/Network
- Power/VoltageIntegralUNV 120-277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance60000 h
- CertificatesETLMade in USA
- EnvironmentDamp
- Mounting TypeCeiling RecessedDrywallTrimless DrywallT-Grid CeilingWoodTrimless Wood
- HousingNew ConstructionChicago Plenum
- Housing Depth6 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead time3G-4RGZ
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
