3G-DL2-20SA. 2 LIGHT DOWNLIGHT 2'' ADJUSTABLE DUAL APERTURE.
 Configure
 Add to project

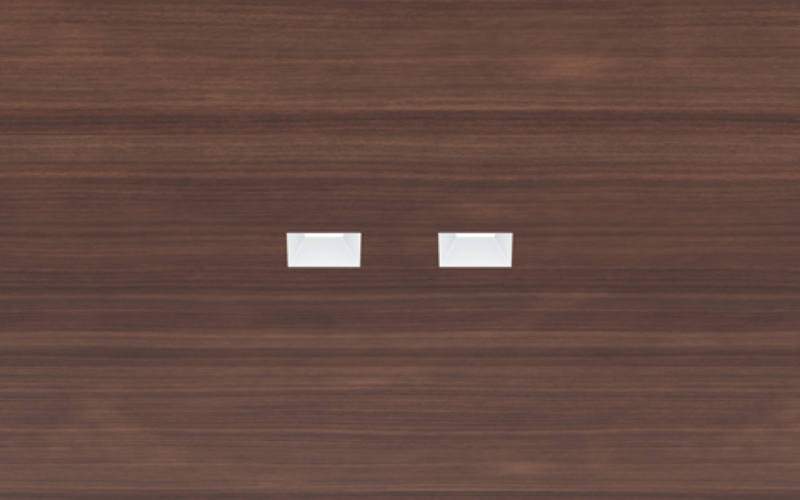

3G Lighting. 3G-DL2-20SA. 2 LIGHT DOWNLIGHT 2
3G Lighting. 3G-DL2-20SA. 2 LIGHT DOWNLIGHT 2
3G Lighting. 3G-DL2-20SA. 2 LIGHT DOWNLIGHT 2
3G Lighting. 3G-DL2-20SA. 2 LIGHT DOWNLIGHT 2
RESOURCES
DESCRIPTION
2" square dual aperture, adjustable downlights
Standard 95+ CRI LED system with performance up to 95 LPW
Delivered lumen range per downlight up to 1545lm at 95+ CRI
Installation and fully serviceable from below ceiling plane
Proprietary hot aiming mechanism with sliding center beam optimization
0°- 35° lockable tilt and 360° rotation
Companion to 3G's Cylinder product family
Declare® LBC Red List Free
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 2.94"2.09"
    L: 2.94"2.09"
  • Light Source
    LED
  • CCT/Color
    2400K or less2700K3000K3500K4000K
  • CRI
    95
  • Watt(Approx)
    8.1 W11.2 W15.6 W18.8 W
  • Lumens(Approx)
    750 Lm1000 Lm1250 Lm1500 Lm
  • Optics
    DirectNarrowMediumFloodWide Flood
  • Adjustable
    Adjustable
  • Dimming
    Dim to 1%Dim to <1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALI
  • Controls/Network
    Lutron®
  • Power/Voltage
    IntegralRemoteUNV 120-277V120V
  • Integral Emergency
  • Lumen Maintenance
    50000 h
  • Certificates
    ETLMade in USADeclare
  • Environment
    DampWet
  • Mounting Type
    Ceiling RecessedMillwork RecessedDrywallTrimless DrywallWoodTrimless Wood
  • Housing
    New Construction
  • Housing Depth
    4.62 ''
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
