3G Lighting

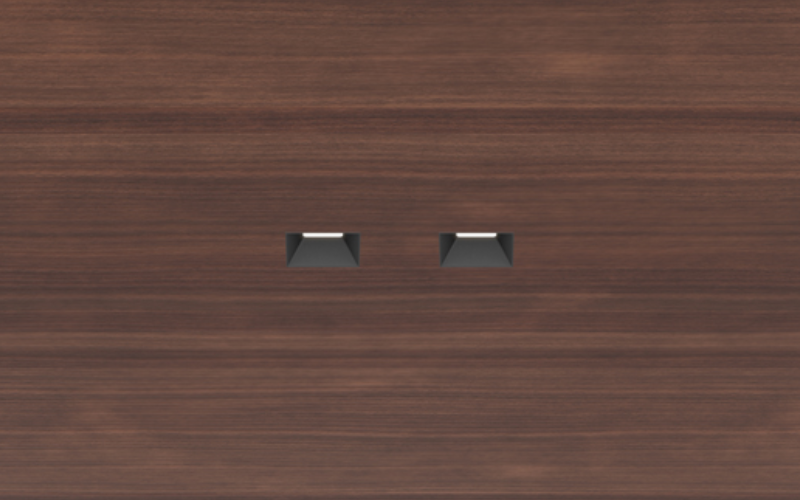

3G-DL2-20SF. 2 LIGHT DOWNLIGHT 2'' FIXED DUAL APERTURE.
Configure
Add to project
RESOURCES
DESCRIPTION
2" square dual aperture, fixed downlights
Standard 95+ CRI LED system with performance up to 103 LPW
Delivered lumen range per downlight up to 1700lm at 95+ CRI
Installation and fully serviceable from below ceiling plane
15° to 90° beam angle options suitable for various applications
Companion to 3G's Cylinder product family
Declare® LBC Red List Free
Standard 95+ CRI LED system with performance up to 103 LPW
Delivered lumen range per downlight up to 1700lm at 95+ CRI
Installation and fully serviceable from below ceiling plane
15° to 90° beam angle options suitable for various applications
Companion to 3G's Cylinder product family
Declare® LBC Red List Free
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2.94"2.09"L: 2.94"2.09"
- Light SourceLED
- CCT/Color2400K or less2700K3000K3500K4000K
- CRI95
- Watt(Approx)7.5 W10.3 W13 W15.6 W18.5 W
- Lumens(Approx)750 Lm1000 Lm1250 Lm1450 Lm1650 Lm
- OpticsDirectNarrowMediumFloodWide FloodGeneral Diffused
- Adjustable
- DimmingDim to 1%Dim to <1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALI
- Controls/NetworkLutron®
- Power/VoltageIntegralRemoteUNV 120-277V120V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesETLMade in USADeclare
- EnvironmentDampWet
- Mounting TypeCeiling RecessedMillwork RecessedDrywallTrimless DrywallWoodTrimless Wood
- HousingNew Construction
- Housing Depth4.5 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead time3G-DL2-20SF
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
