3G Lighting

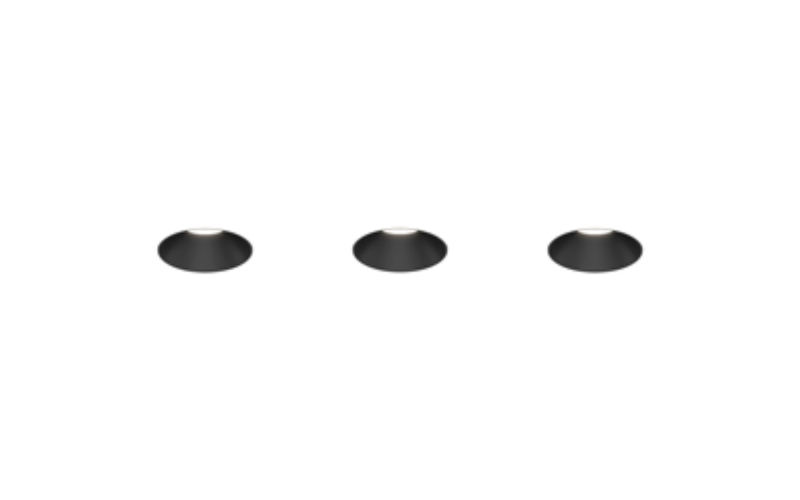

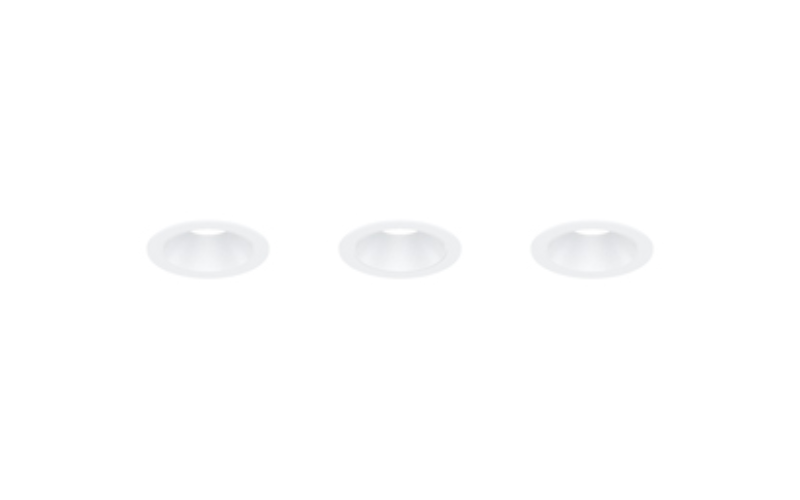

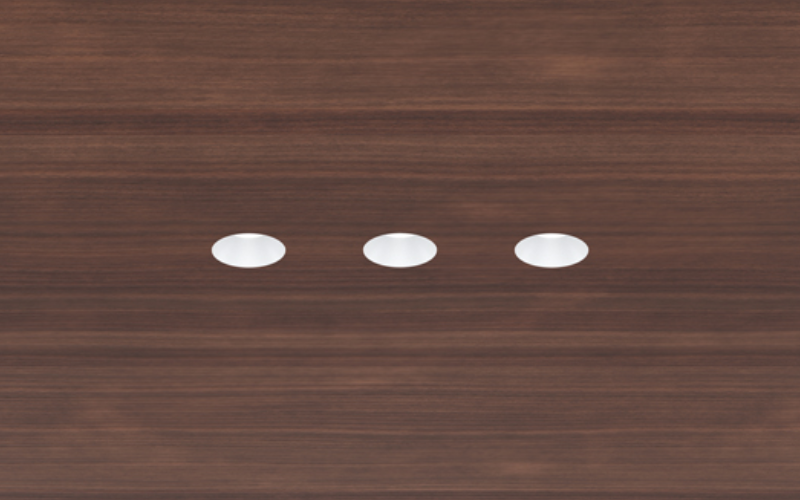

3G-DL3-20RF. 3 LIGHT DOWNLIGHT 2" FIXED TRIPLE APERTURE.
 Configure
 Add to project
3G Lighting. 3G-DL3-20RF. 3 LIGHT DOWNLIGHT 2
3G Lighting. 3G-DL3-20RF. 3 LIGHT DOWNLIGHT 2
3G Lighting. 3G-DL3-20RF. 3 LIGHT DOWNLIGHT 2
3G Lighting. 3G-DL3-20RF. 3 LIGHT DOWNLIGHT 2
RESOURCES
DESCRIPTION
2" diameter triple aperture, fixed downlights
Standard 95+ CRI LED system with performance up to 103 LPW
Delivered lumen range per downlight up to 1700lm at 95+ CRI
Installation and fully serviceable from below ceiling plane
15° to 90° beam angle options suitable for various applications
Companion to 3G's Cylinder product family
Declare® LBC Red List Free
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 2.94"2.09"
    L: 2.94"2.09"
  • Light Source
    LED
  • CCT/Color
    2400K or less2700K3000K3500K4000K
  • CRI
    95
  • Watt(Approx)
    7.5 W10.3 W13 W15.6 W18.5 W
  • Lumens(Approx)
    750 Lm1000 Lm1250 Lm1450 Lm1650 Lm
  • Optics
    DirectNarrowMediumFloodWide FloodGeneral Diffused
  • Adjustable
  • Dimming
    Dim to 1%Dim to <1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALI
  • Controls/Network
    Lutron®
  • Power/Voltage
    IntegralRemoteUNV 120-277V120V
  • Integral Emergency
  • Lumen Maintenance
    50000 h
  • Certificates
    ETLMade in USADeclare
  • Environment
    DampWet
  • Mounting Type
    Ceiling RecessedMillwork RecessedDrywallTrimless DrywallWoodTrimless Wood
  • Housing
    New Construction
  • Housing Depth
    4.5 ''
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
