3G Lighting

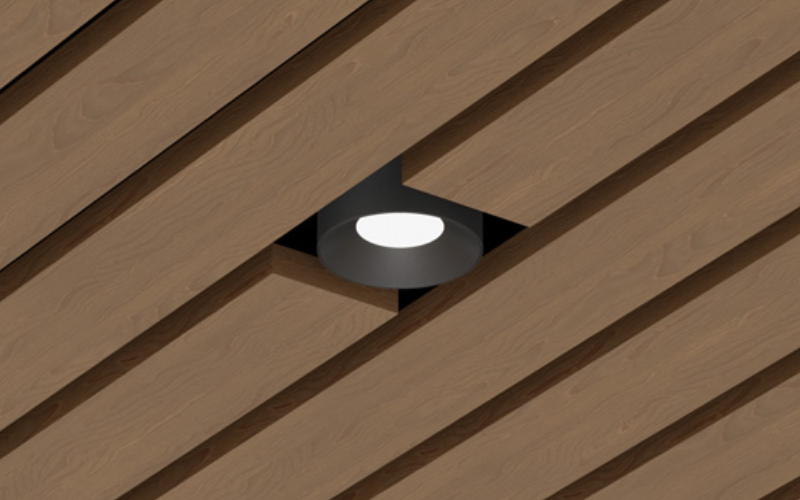

3G-DL33RF-SC. 3.3'' ROUND FIXED DOWNLIGHT SPECIALTY CEILINGS.
Configure
Add to project
RESOURCES
DESCRIPTION
- 3.3" diameter fixed downlight with upgraded performance
- Designed for integration with various specialty ceilings
- Standard 95+ CRI LED system with performance up to 144 LPW
- Delivered lumen range up to 3000lm at 95+ CRI
- Regressed LED source for enhanced glare control
- 20° to 90° beam angle options suitable for various applications
- Title 24 JA8 certified with maximum 1500lm output
- Companion to 3G's Cylinder product family
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 3.5"L: 3.5"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI95
- Watt(Approx)8.6 W13.5 W18.3 W25.8 W31.2 W
- Lumens(Approx)1000 Lm1500 Lm2000 Lm2500 Lm3000 Lm
- OpticsDirectMediumFloodWide Flood
- Adjustable
- DimmingDim to 1%Dim to <1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALILutron Hi-lume EcoSystem (LDE1)DMX
- Controls/Network
- Power/VoltageIntegralUNV 120-277V120V347V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesETLT24*
- EnvironmentDamp
- Mounting TypeCeiling RecessedTrimless Wood
- HousingNew ConstructionChicago Plenum
- Housing Depth5.23 ''7.38 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead time3G-DL33RF-SC
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
