3G Lighting

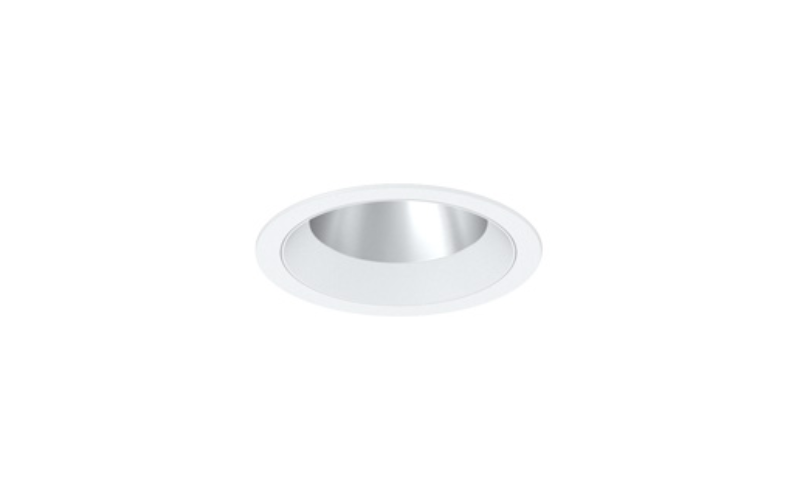

3G-DL33RF70. 3'' ROUND FIXED 70mm DOWNLIGHT.
Configure
Add to project
RESOURCES
DESCRIPTION
- Small 3” deep regress, high performance downlight
- Regressed LED source for enhanced glare control
- Lumen range of 1000lm to 4000lm (80+, 90+, and 97+ CRI)
- Wet location option available
- Shallow housing available along with other housing options
- 1% dimming standard with several driver options
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 3.33"4.13"L: 4.13"3.33"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI95
- Watt(Approx)8.3 W12.5 W17 W22 W27.4 W32.8 W
- Lumens(Approx)1000 Lm1500 Lm2000 Lm2500 Lm3000 Lm3500 Lm
- OpticsDirectNarrowMediumFloodWide Flood
- Adjustable
- DimmingDim to 1%Dim to <1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALILutron Hi-lume EcoSystem (LDE1)DMX
- Controls/NetworkLutron®
- Power/VoltageIntegralUNV 120-277V120V347V
- Integral EmergencyEM Integral
- Lumen Maintenance50000 h
- CertificatesETLCSAMade in USAT24*
- EnvironmentDampWet
- Mounting TypeCeiling RecessedMillwork RecessedDrywallTrimless DrywallWoodTrimless Wood
- HousingNew ConstructionICChicago PlenumRemodel
- Housing Depth4 ''3.5 ''4.5 ''5.75 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead time3G-DL33RF70
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
