3G Lighting

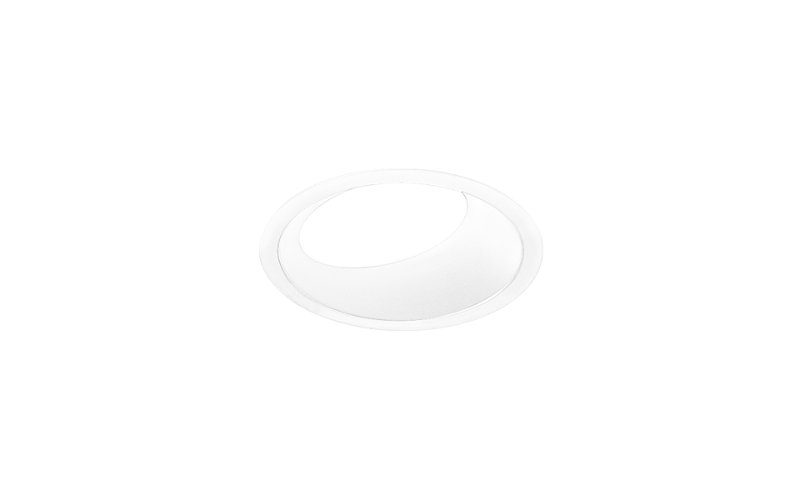

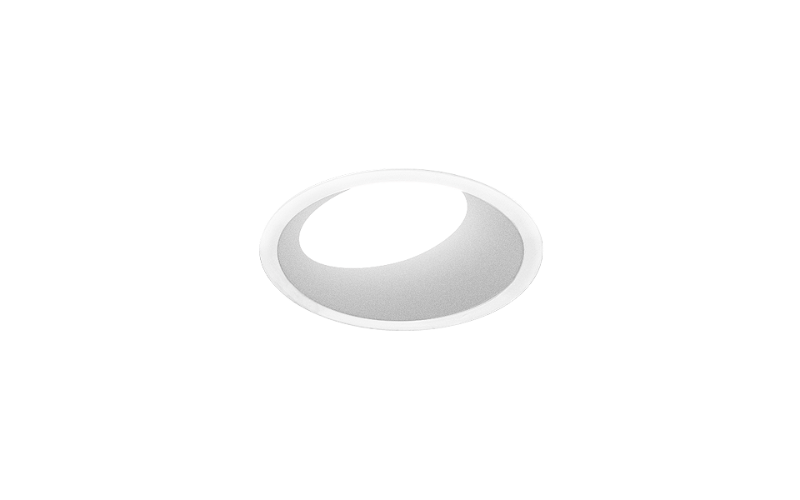

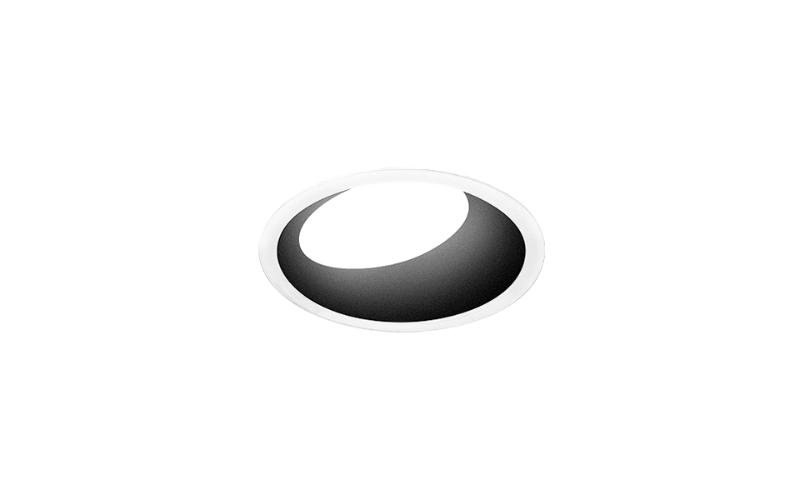

3G-DL33RWW. 3.3” ROUND WALL WASH DYNAMIC WHITE.
Configure
Add to project
RESOURCES
DESCRIPTION
- Small 3.3” round, high performance wall wash downlight
- Regressed LED source for enhanced glare control
- Proprietary wall wash optic and lens
- Lumen range up to 4000lm (80+, 90+, and 97+ CRI options)
- Shallow housing available along with remodel and other housing options
- 1% dimming standard with several integral driver options
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 3.33"4.13"L: 4.13"3.33"
- Light SourceLED
- CCT/Color3000K Dim to WarmTunable White
- CRI90
- Watt(Approx)15.4 W23.2 W
- Lumens(Approx)814 Lm1143 Lm
- OpticsDirectAsymmetric/Wash
- Adjustable
- DimmingDim to 1%Dim to <1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALILutron Hi-lume EcoSystem (LDE1)DMX
- Controls/Network
- Power/VoltageIntegralUNV 120-277V120V347V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesETLCSAMade in USA
- EnvironmentDamp
- Mounting TypeCeiling RecessedMillwork RecessedDrywallTrimless DrywallWoodTrimless Wood
- HousingNew ConstructionICChicago PlenumRemodel
- Housing Depth3.50 ''4.9 ''4.5 ''5.75 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead time3G-DL33RWW-DW
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
