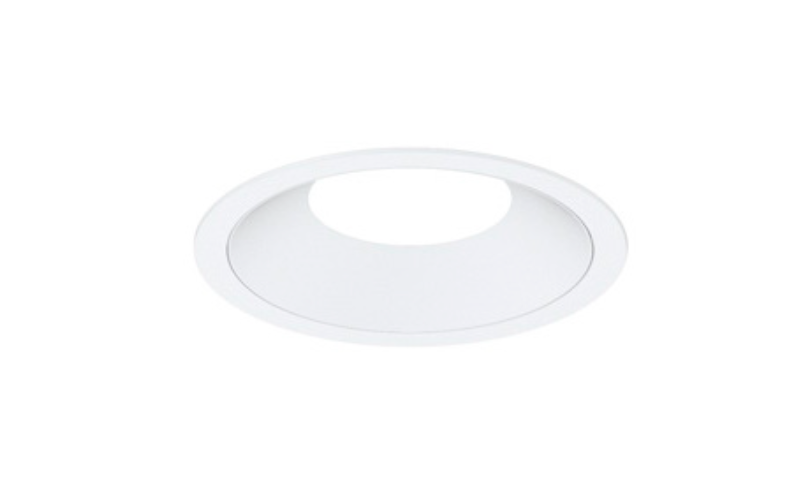

3GQ-DL45RA. 4.5'' ROUND ADJUSTABLE DOWNLIGHT.
Configure
Add to project
RESOURCES
DESCRIPTION
- 4.5” round, adjustable high performance downlight
- Proprietary hot aiming mechanism with sliding center beam optimization
- 0° - 40° lockable tilt and 362° lockable rotation
- Regressed LED source for enhanced glare control
- Lumen range up to 4000lm (80+, 90+, and 97+ CRI options)
- Remodel housing available along with other housing options
- 1% dimming standard with several integral driver options
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 4.58"5.5"L: 5.5"4.58"
- Light SourceLED
- CCT/Color3000K3500K
- CRI80
- Watt(Approx)10.3 W14 W22 W31.3 W
- Lumens(Approx)986 Lm1291 Lm1958 Lm2506 Lm
- OpticsDirectMediumFloodWide Flood
- AdjustableHot Aiming
- DimmingDim to 1%0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesETLMade in USA
- EnvironmentDamp
- Mounting TypeCeiling RecessedDrywallTrimless DrywallWood
- HousingNew ConstructionICChicago PlenumRemodel
- Housing Depth4.5 ''5.67 ''5.75 ''
