3G Lighting

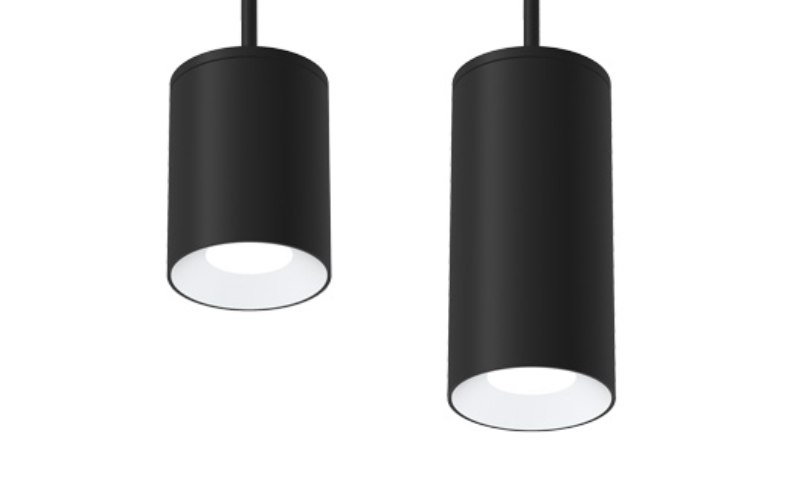

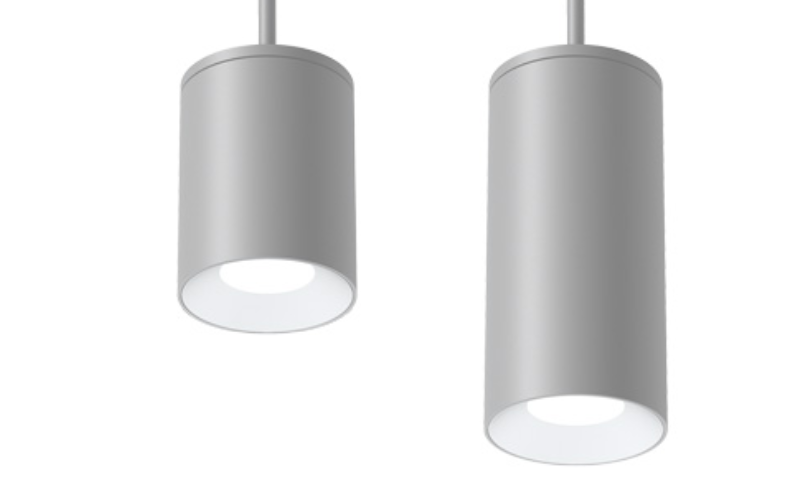

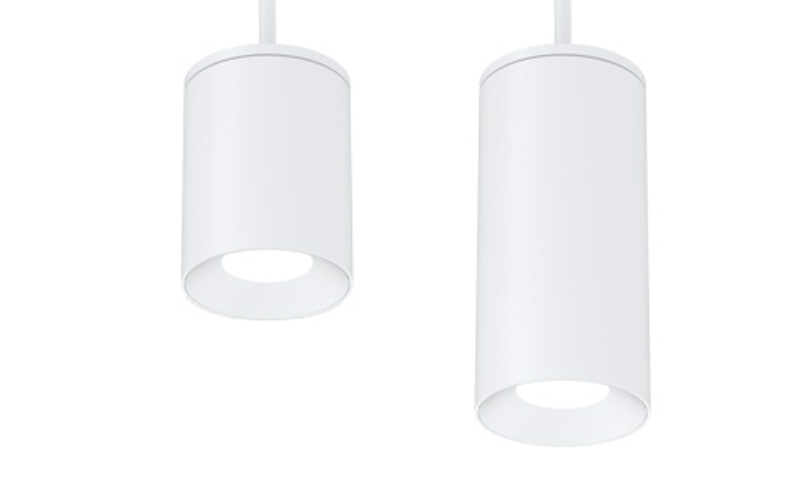

3G-PDL45RF. 4.5” DOWNLIGHT CYLINDER.
Configure
Add to project
RESOURCES
DESCRIPTION
- 4.5” diameter high performance cylinders
- Companion to 3G-DL45R series downlight family
- Extruded aluminum housing with powder coated finish
- Twist and lock construction and no visible hardware
- Regressed LED source for enhanced glare control
- Lumen range up to 4000lm (80+, 90+, and 97+ CRI options)
- 1% dimming standard with several integral driver options
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 4.87"L: 4.87"H: 7"11"
- Light SourceLED
- CCT/Color3000K3500K4000K
- CRI80 90
- Watt(Approx)10.3 W14 W22 W31 W
- Lumens(Approx)1080 Lm1454 Lm2156 Lm2634 Lm
- OpticsDirectMediumFloodWide FloodGeneral Diffused
- Adjustable
- DimmingDim to 1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V120V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesETLMade in USA
- EnvironmentDamp
- Mounting TypePendant
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead time3G-PCL45R_QS
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
