3G Lighting

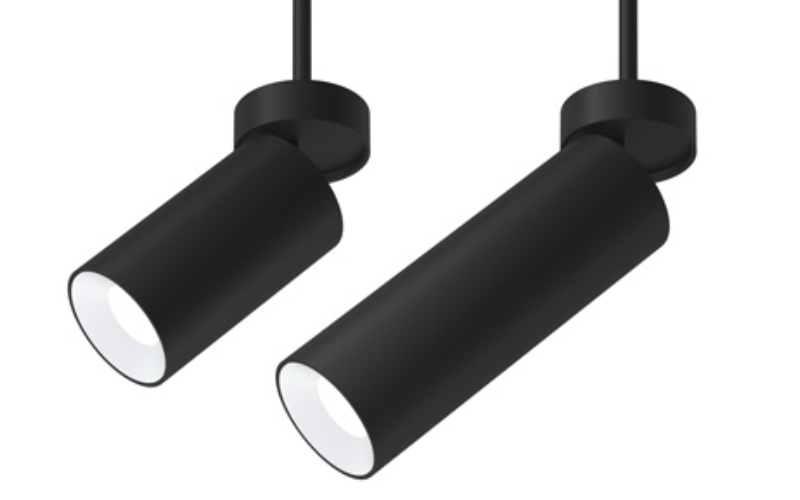

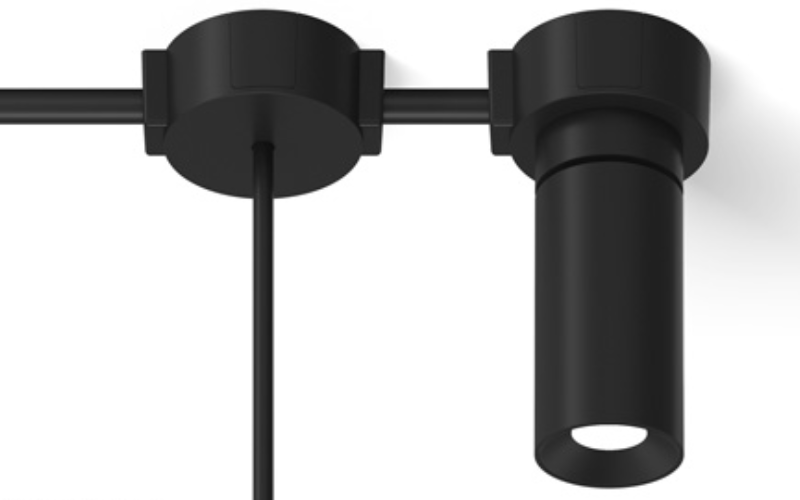

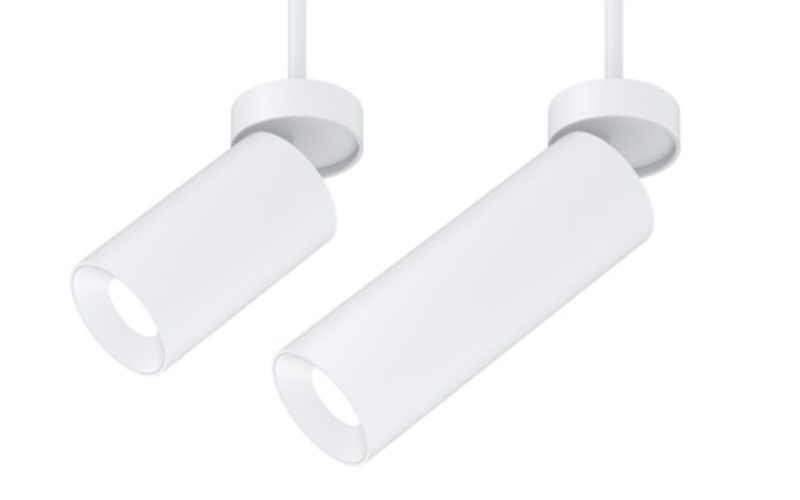

3G-PDL33RA. 3'' ADJUSTABLE DOWNLIGHT CYLINDER 7'' AND 11'' HEIGHT.
Configure
Add to project
RESOURCES
DESCRIPTION
- 3” diameter, adjustable high performance cylinders
- Adjustable housing with 0-90° tilt and 360° rotation
- Companion to 3G-DL33R series downlight family
- Extruded aluminum housing with powder coated finish
- Twist and lock construction and no visible hardware
- Regressed LED source for enhanced glare control
- Lumen range up to 2200lm (80+, 90+, and 97+ CRI options)
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 3.62"L: 3.62"H: 7.86"12.01"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI95
- Watt(Approx)9.1 W12.8 W16.7 W18.9 W
- Lumens(Approx)1000 Lm1342 Lm1750 Lm2000 Lm
- OpticsDirectNarrowMediumFloodWide FloodGeneral Diffused
- AdjustableAdjustable
- DimmingDim to 1%Dim to <1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALILutron Hi-lume EcoSystem (LDE1)DMX
- Controls/Network
- Power/VoltageIntegralUNV 120-277V120V347V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesETLMade in USA
- EnvironmentDamp
- Mounting TypePendant
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead time3G-PDL33RA
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
