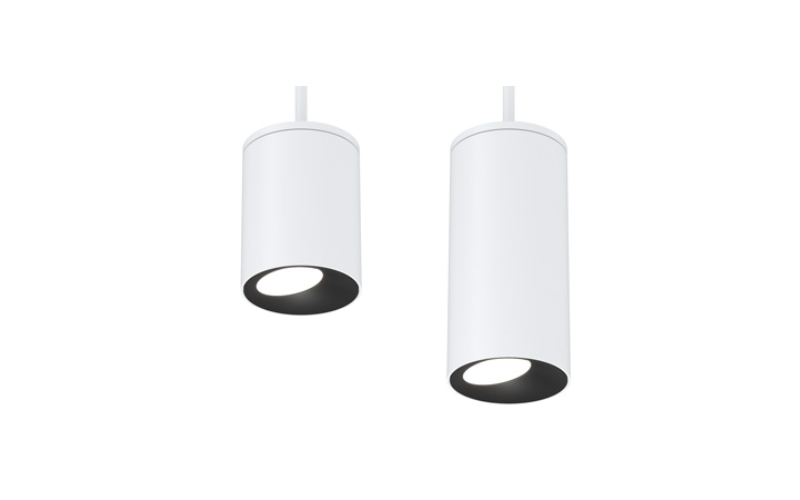

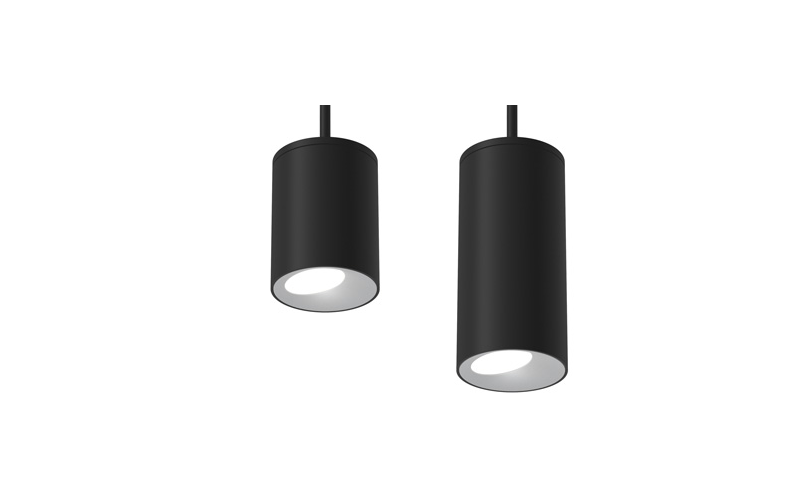

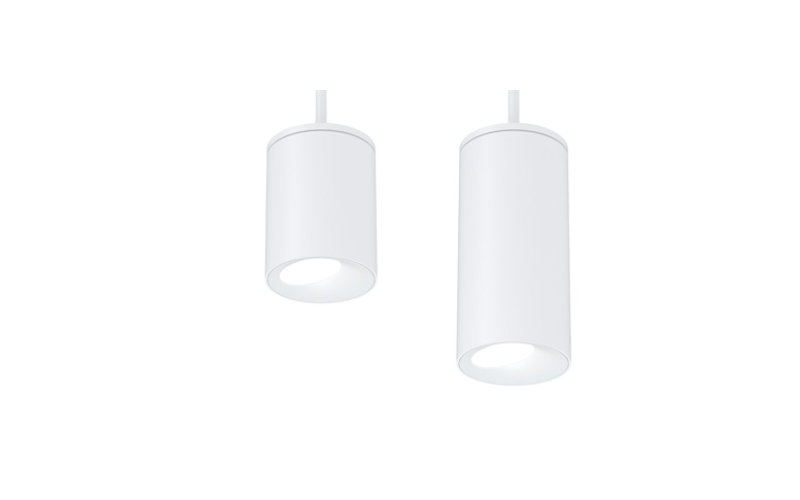

3G-PDL45RWW. 4” WALL WASH CYLINDER 7” AND 11” HEIGHT.
Configure
Add to project
RESOURCES
DESCRIPTION
- 4” diameter high performance wall wash cylinder
- Companion to 3G-DL45R series downlight family
- Extruded aluminum housing with powder coated finish
- Twist and lock construction and no visible hardware
- Regressed LED source for enhanced glare control
- Lumen range up to 2200lm (80+, 90+, and 97+ CRI options)
- 1% dimming standard with several integral driver options
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 4.87"L: 4.87"H: 7"11"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI95
- Watt(Approx)13.6 W17.0 W21.2 W
- Lumens(Approx)1000 Lm1250 Lm1500 Lm
- OpticsDirectAsymmetric/Wash
- Adjustable
- DimmingDim to 1%Dim to <1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALILutron Hi-lume EcoSystem (LDE1)DMX
- Controls/Network
- Power/VoltageIntegralUNV 120-277V120V347V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesETLMade in USA
- EnvironmentDamp
- Mounting TypePendant
- Housing
- Housing Depth
