3G Lighting

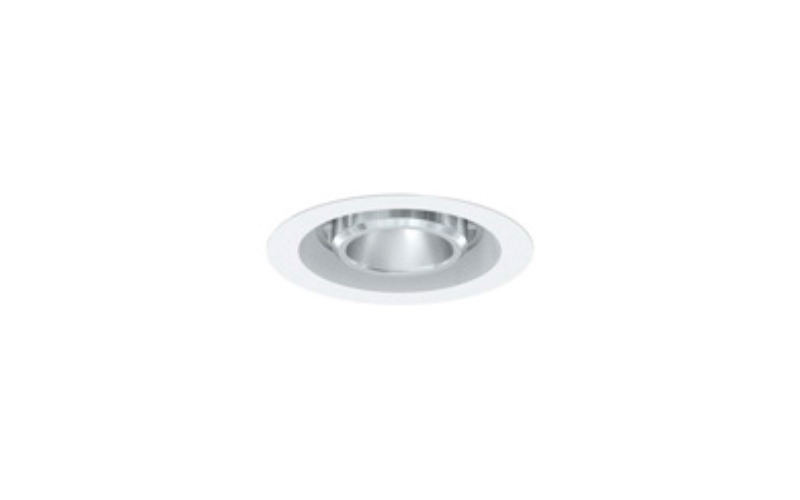

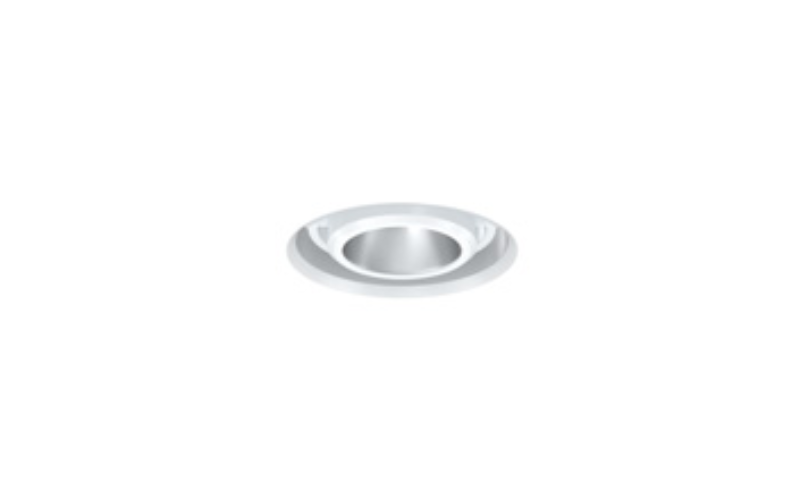

3G-RC1-5RD. 5” ROUND MADISON DYNAMIC WHITE.
Configure
Add to project
RESOURCES
DESCRIPTION
- New construction, shallow housing, and IC housing options available
- Machined aluminum insert with seamless ceiling integration
- Trim fixture designed to conceal internal hardware
- Machined aluminum double gimbal. Adjustable and lockable
- Regressed LED source for enhanced glare control
- Lumen range of 1000lm to 5000lm (80+, 90+, and 97+ CRI options)
- 1% dimming standard with several integral driver options
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 8.95"L: 9.27"
- Light SourceLED
- CCT/Color3000K Dim to WarmTunable White
- CRI90
- Watt(Approx)15.4 W23.2 W
- Lumens(Approx)800 Lm1136 Lm1593 Lm
- OpticsDirectNarrowMediumFloodWide FloodGeneral Diffused
- AdjustableLock Aiming
- DimmingDim to 1%Dim to <1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VLutron Hi-lume EcoSystem (LDE1)eldoLED ECO DALIeldoLED SOLO 0-10VeldoLED SOLO DMX
- Controls/Network
- Power/VoltageIntegralUNV 120-277V120V347V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesETLCSAMade in USA
- EnvironmentDamp
- Mounting TypeCeiling RecessedDrywallTrimless DrywallWood
- HousingNew ConstructionICChicago Plenum
- Housing Depth5.75 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead time3G-RC1-5RD-TR-TL-DW
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
