3G-RMZ12WW-SC. 12'' ZOIE WALL WASH DOWNLIGHT SPECIALTY CEILINGS.
Configure
Add to project
RESOURCES
DESCRIPTION

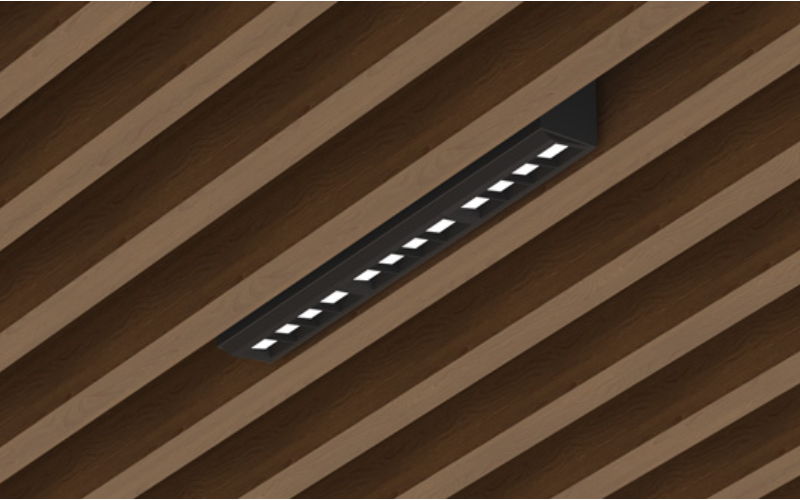

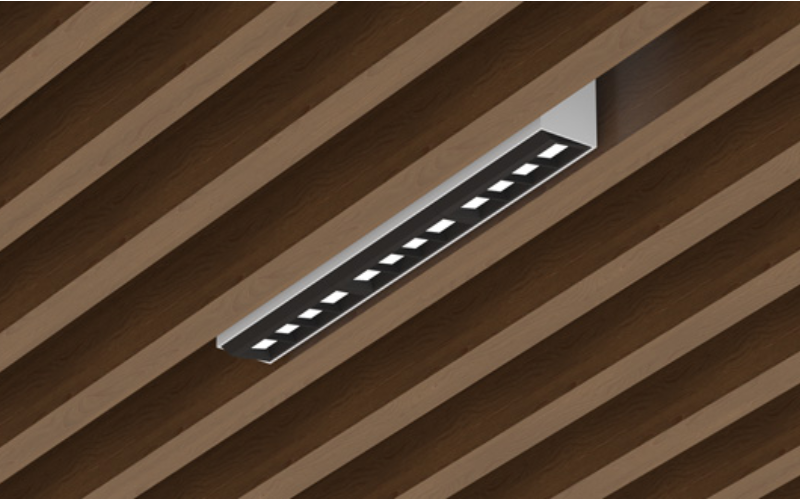

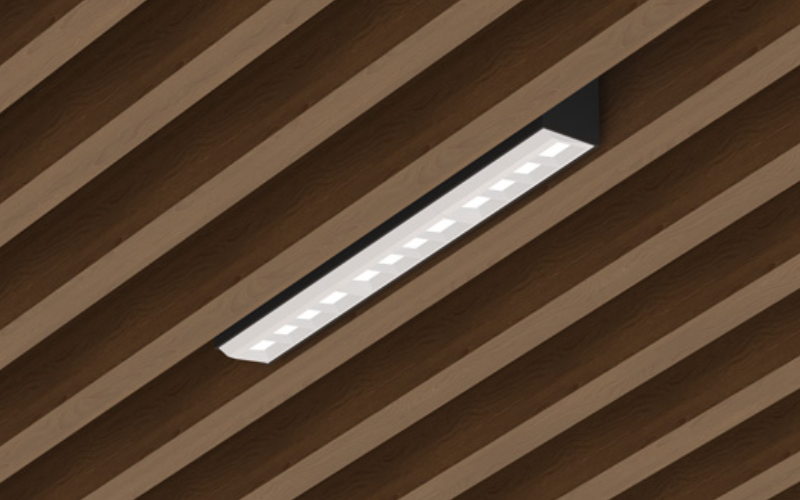

12" wall wash downlight designed for integration with specialty ceilings
Standard 90+ CRI LED system with performance up to 91 LPW
Delivered lumen range up to 3000lm at 90+ CRI
Proprietary wall wash optic and lens with enhanced glare control
Matte black and matte white louver finish
Companion to 3G's Zoie product family
Standard 90+ CRI LED system with performance up to 91 LPW
Delivered lumen range up to 3000lm at 90+ CRI
Proprietary wall wash optic and lens with enhanced glare control
Matte black and matte white louver finish
Companion to 3G's Zoie product family
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 1.32"L: 12.5"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI90
- Watt(Approx)10.9 W17 W22.9 W29 W35 W
- Lumens(Approx)1000 Lm1500 Lm2000 Lm2500 Lm3000 Lm
- OpticsDirectAsymmetric/Wash
- Adjustable
- DimmingDim to 1%Dim to <1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALILutron Hi-lume EcoSystem (LDE1)DMX
- Controls/Network
- Power/VoltageIntegralUNV 120-277V120V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesETLMade in USA
- EnvironmentDamp
- Mounting TypeCeiling RecessedTrimless Wood
- HousingNew ConstructionChicago Plenum
- Housing Depth5.26 ''7.1 ''
