3G-RMZ4WW-SC. 4'' ZOIE WALL WASH DOWNLIGHT SPECIALTY CEILINGS.
Configure
Add to project
RESOURCES
DESCRIPTION

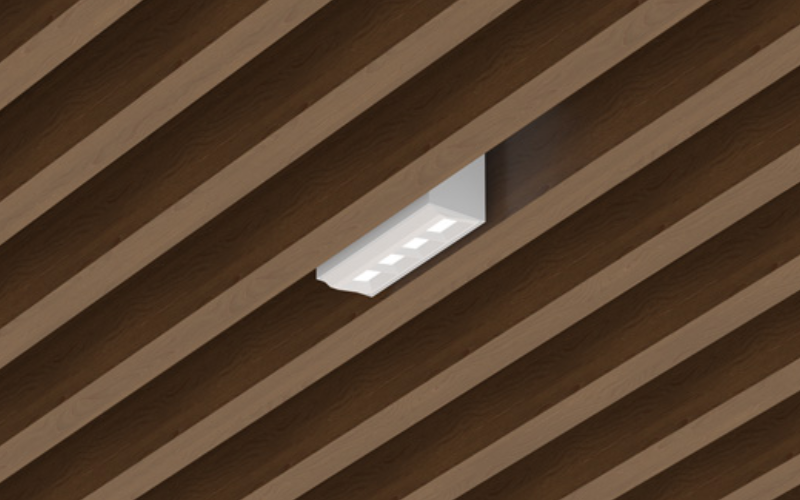

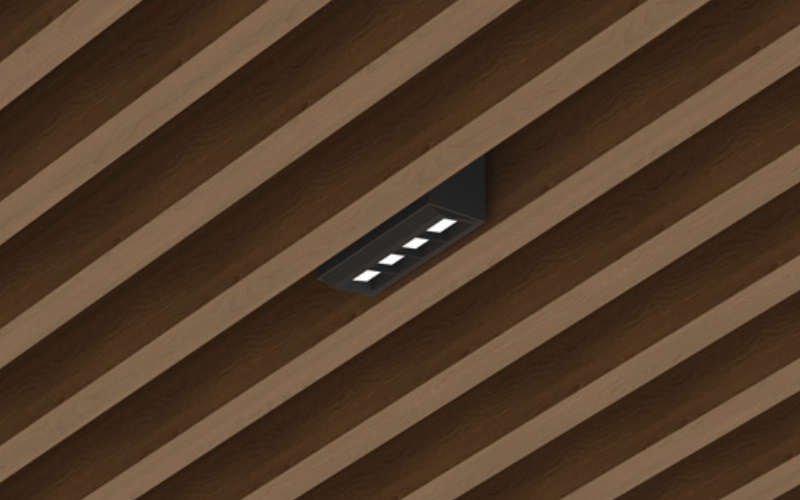

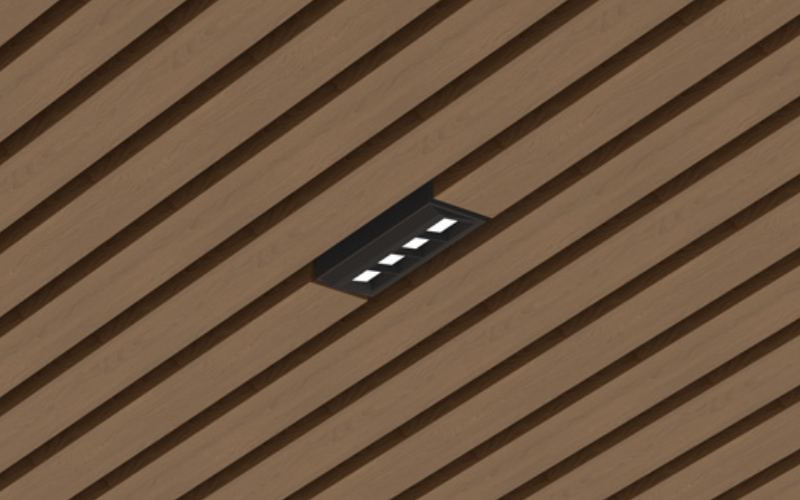

4" wall wash downlight designed for integration with specialty ceilings
Standard 90+ CRI LED system with performance up to 81 LPW
Delivered lumen range up to 1000lm at 90+ CRI
Proprietary wall wash optic and lens with enhanced glare control
Matte black and matte white louver finish
Companion to 3G's Zoie product family
Standard 90+ CRI LED system with performance up to 81 LPW
Delivered lumen range up to 1000lm at 90+ CRI
Proprietary wall wash optic and lens with enhanced glare control
Matte black and matte white louver finish
Companion to 3G's Zoie product family
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 1.32"L: 4.14"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI90
- Watt(Approx)6.2 W13 W
- Lumens(Approx)506 Lm1000 Lm
- OpticsDirectAsymmetric/Wash
- Adjustable
- DimmingDim to 1%Dim to <1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALIDMX
- Controls/Network
- Power/VoltageIntegralUNV 120-277V120V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesETLMade in USA
- EnvironmentDamp
- Mounting TypeCeiling RecessedTrimless Wood
- HousingNew ConstructionChicago Plenum
- Housing Depth5.26 ''7.1 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
