3G Lighting

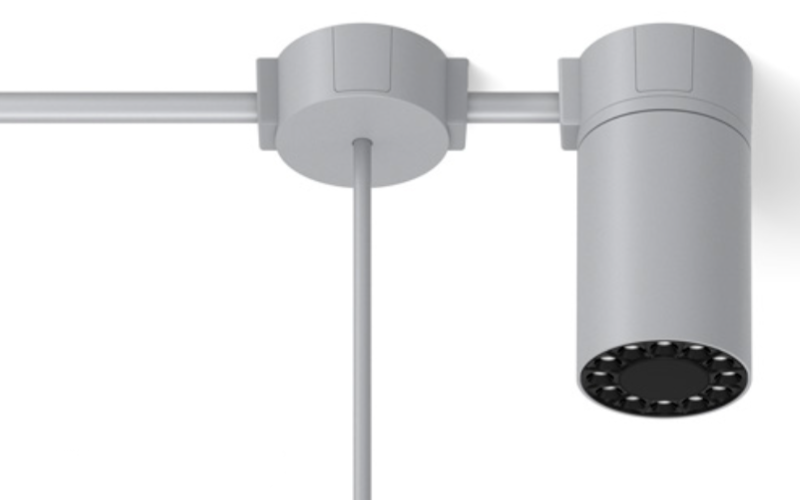

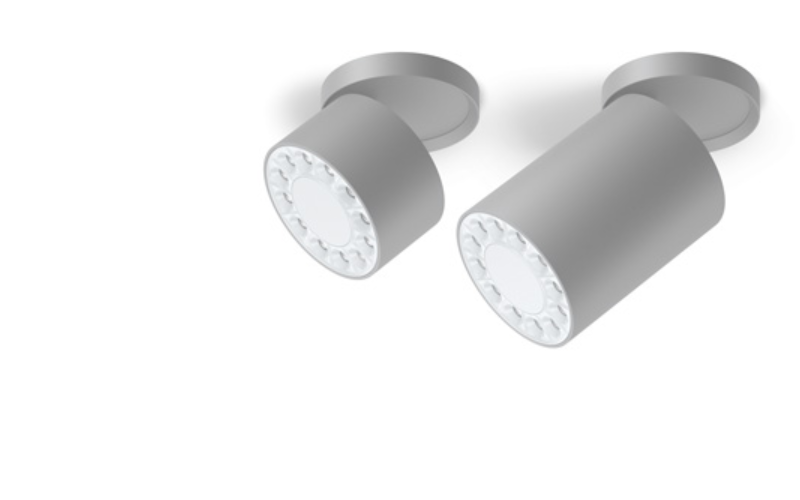

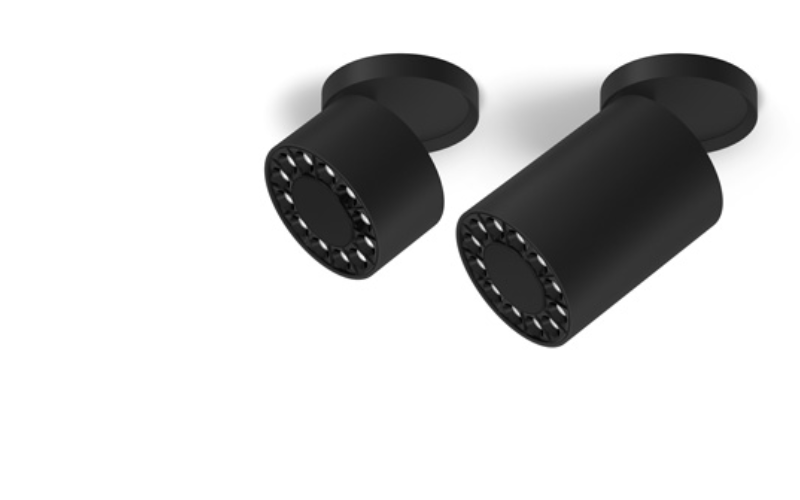

3G-SDZ45RA. 4'' ADJUSTABLE ZOIE CYLINDER 3'' AND 7'' HEIGHT.
Configure
Add to project
RESOURCES
DESCRIPTION
- 4” diameter adjustable Zoie cylinder with 0-90° tilt and 360° rotation
- Companion to 3G-DZ45R Round Zoie Downlight
- Regressed LED source provides maximum visual comfort, UGR <10
- High gloss black or white louvers with proprietary optics and no glare
- Extruded aluminum housing with powder coated finish
- Lumen range from 1000lm to 3000lm (80+ and 90+ CRI options)
- 100-1% dimming range standard with integral driver options
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 4.87"L: 4.87"H: 3.81"7.5"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI80 90
- Watt(Approx)8 W12.8 W17.1 W22.3 W29 W
- Lumens(Approx)1000 Lm1500 Lm2000 Lm2500 Lm3000 Lm
- OpticsDirectMediumFloodWide Flood
- AdjustableAdjustable
- DimmingDim to 1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V120V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesETLMade in USA
- Environment
- Mounting TypeCeiling Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead time3G-SDZ45RA
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
