3G Lighting

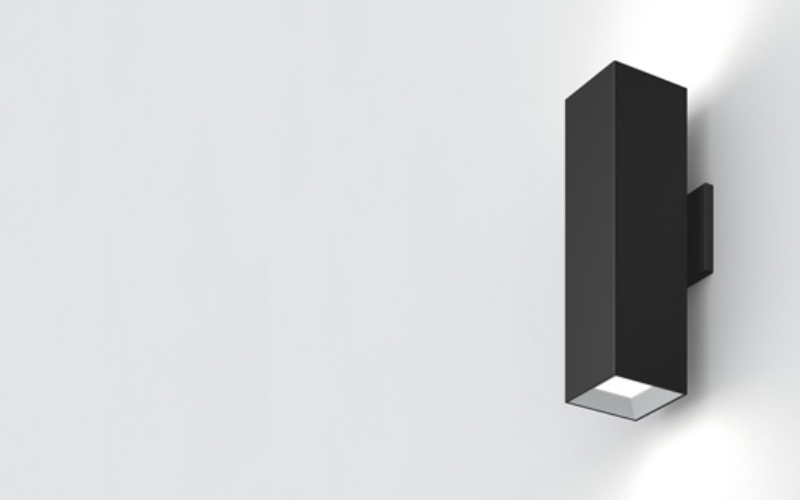

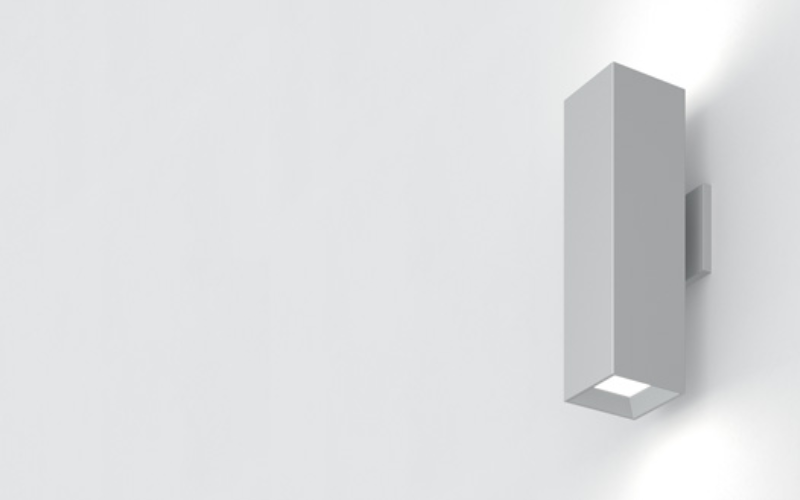

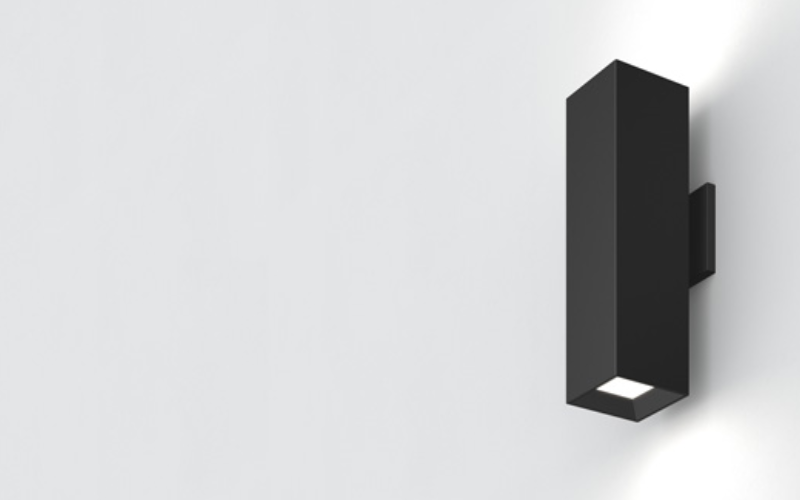

3G-WDL33SF-DI. 3'' WALL CYLINDER DIRECT/INDIRECT 14'' HEIGHT.
Configure
Add to project
RESOURCES
DESCRIPTION
- 3” high performance wall mounted downlight cylinder
- Standard 95+ CRI LED system with up to 111 LPW
- Delivered lumen range up to 1500lm at 95+ CRI
- Direct/Indirect distribution
- Extruded aluminum housing with powder coated finish
- Regressed LED source for enhanced glare control
- Companion to 3G-DL33R series downlight family
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 4.85"L: 3.62"H: 14"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI95
- Watt(Approx)6.5 W9.2 W11.5 W
- Lumens(Approx)750 Lm1000 Lm1250 Lm1057 Lm
- OpticsDirect/IndirectNarrowMediumFloodWide FloodGeneral Diffused
- Adjustable
- DimmingDim to 1%Dim to <1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALI
- Controls/Network
- Power/VoltageIntegralUNV 120-277V120V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesETLMade in USA
- EnvironmentDamp
- Mounting TypeWall Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead time3G-WDL33SF-DI
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
