3G Lighting

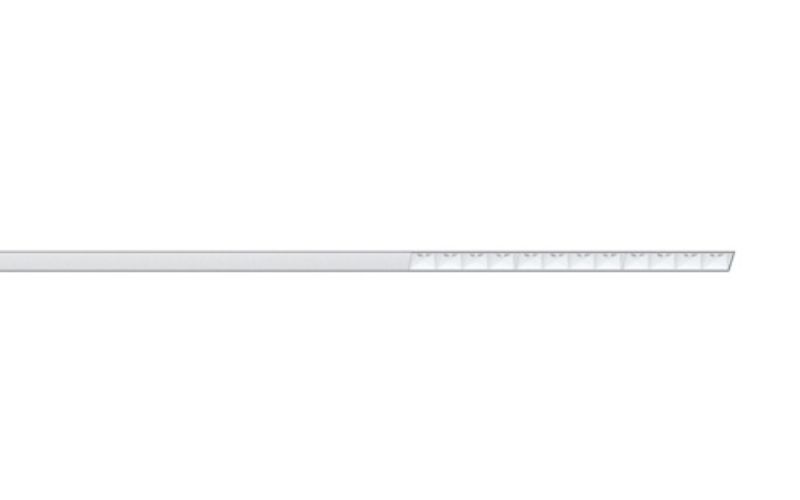

3GI-1RSL. 1.5'' INTEGRATED RECESSED SLOT.
Configure
Add to project
RESOURCES
DESCRIPTION

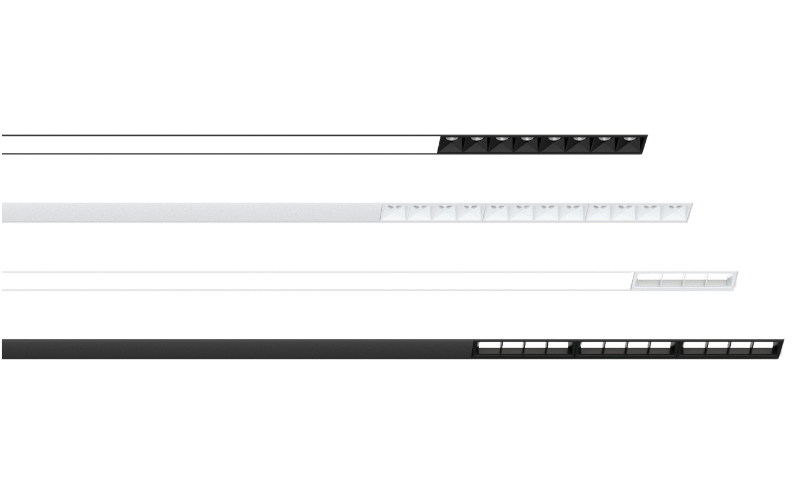

1.5” aperture with one piece extruded aluminum housing Individual or continuous runs available, use online configurator Direct distribution with multiple source options and various lumen outputs Integrated options include Linia, Zoie, Zoie Wall Wash and non-illuminated faceplates Extruded acrylic lens with optimal performance and glare control Suitable for drywall, wood, grid ceiling, and other architectural ceiling applications 1% dimming standard with several driver options
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2.38"1.55"L: Run length (Ft)
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI90
- Watt(Approx)4.4 W/Ft9.2 W/Ft8.8 W/Ft5.5 W/Ft13.1 W/Ft12.3 W/Ft11.3 W/Ft18.7 W/Ft17.1 W/Ft28.7 W/Ft25.3 W/Ft37.8 W/Ft2.5 W/Ft5 W/Ft7.9 W/Ft10.9 W/Ft
- Lumens(Approx)400 Lm/Ft800 Lm/Ft1200 Lm/Ft1600 Lm/Ft2400 Lm/Ft250 Lm/Ft500 Lm/Ft750 Lm/Ft1000 Lm/Ft
- OpticsDirectNarrowFloodWide FloodGeneral DiffusedAsymmetric/Wash
- Adjustable
- DimmingDim to 1%Dim to <1%0-10VDALILutron Hi-lume EcoSystem (LDE1)DMX
- Controls/Network
- Power/VoltageIntegralUNV 120-277V120V347V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesETLMade in USA
- EnvironmentDamp
- Mounting TypeCeiling RecessedDrywallTrimless DrywallT-Grid Ceiling
- HousingNew Construction
- Housing Depth3.63 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead time3GI-1RSL
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
