3G Lighting

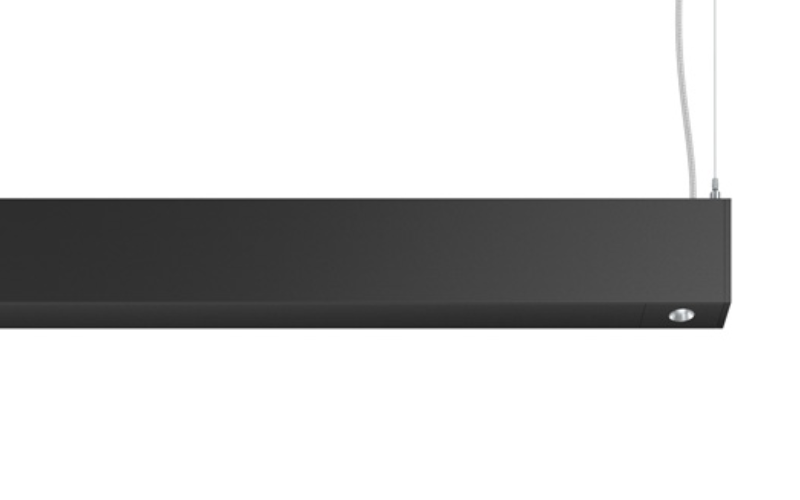

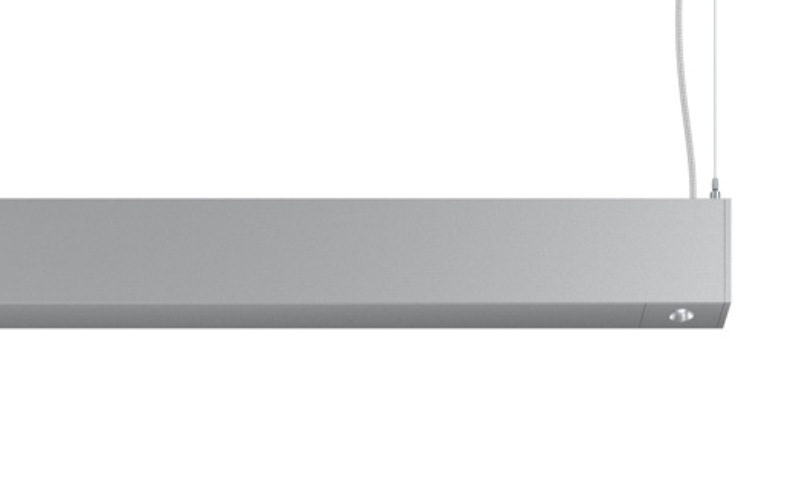

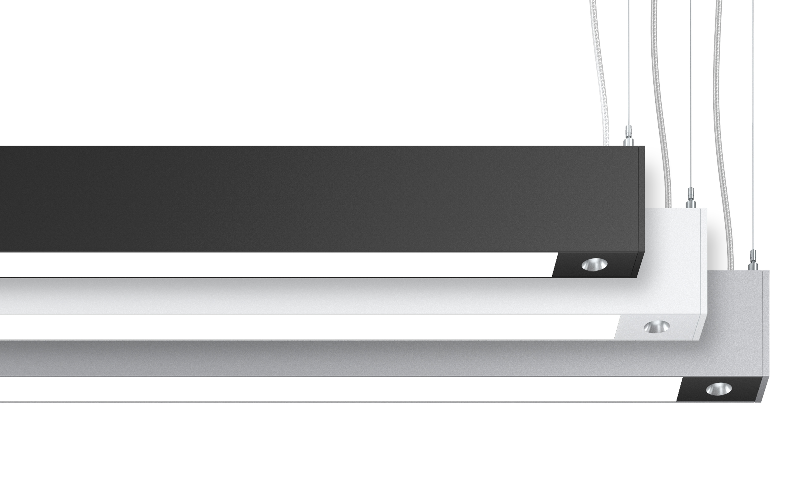

3GI-2PSL-DI. 2'' INTEGRATED PENDANT SLOT DIRECT/INDIRECT.
Configure
Add to project
RESOURCES
DESCRIPTION
- 2” aperture with one piece extruded aluminum housing
- Individual or continuous runs available. See online configurator
- Direct/indirect distribution with multiple source options and various lumen outputs
- Integrated option of fixed downlight
- Extruded acrylic lens available in flush, 1" and 2" drop lens options
- Widespread and asymmetric optics available
- 1% dimming standard with several integral driver options
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2"L: Run length (Ft)H: 4"5"6"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI90
- Watt(Approx)6.5 W/Ft9.2 W/Ft4 W/Ft8.6 W/Ft13.5 W/Ft18.8 W/Ft
- Lumens(Approx)640 Lm/Ft930 Lm/Ft500 Lm/Ft1000 Lm/Ft1500 Lm/Ft2000 Lm/Ft
- OpticsDirect/IndirectMediumFloodWide FloodGeneral DiffusedAsymmetric/WashBatwing
- Adjustable
- DimmingDim to 1%Dim to <1%0-10VDALILutron Hi-lume EcoSystem (LDE1)DMX
- Controls/Network
- Power/VoltageIntegralUNV 120-277V347V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesETLMade in USA
- EnvironmentDamp
- Mounting TypePendant
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead time3GI-2PSL-DI
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
