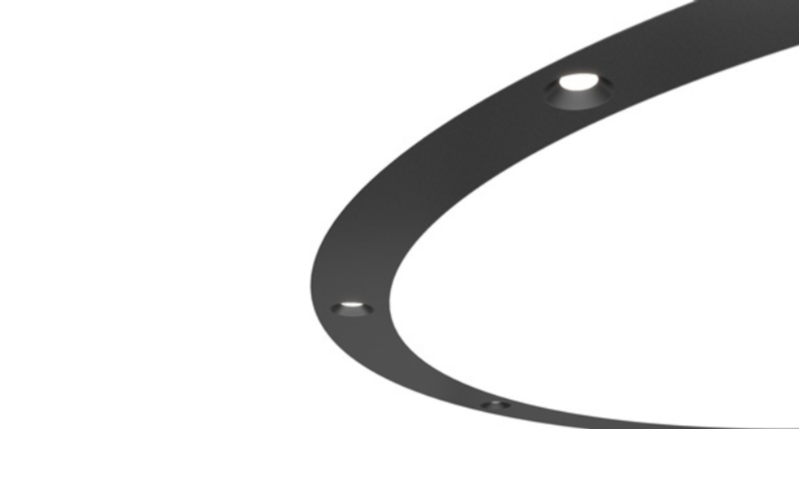

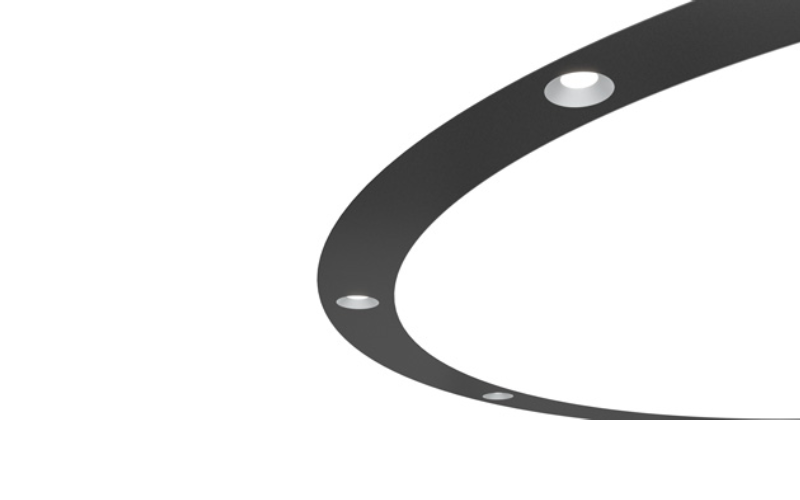

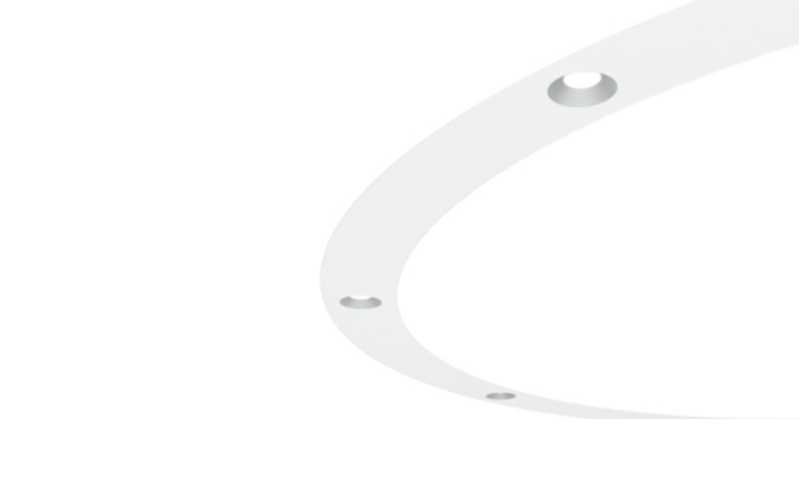

3GR-58RDSL. 5.8'' CURVED RECESSED SLOT 3'' DOWNLIGHT.
Configure
Add to project
RESOURCES
DESCRIPTION
Curved channel segments available in radii from 12" to 60"
Angle options: 30°, 45°, 60°, and 90°
Combine with straight segments to create continuous, geometry-driven layouts
Machined aluminum faceplate with round, trimless downlight integration
3” round adjustable or 3" round fixed downlight option
Standard 95+ CRI LED system with performance up to 147 LPW
Delivered lumen range up to 3000lm at 95+ CRI
10° to 90° beam angle options suitable for various applications
Angle options: 30°, 45°, 60°, and 90°
Combine with straight segments to create continuous, geometry-driven layouts
Machined aluminum faceplate with round, trimless downlight integration
3” round adjustable or 3" round fixed downlight option
Standard 95+ CRI LED system with performance up to 147 LPW
Delivered lumen range up to 3000lm at 95+ CRI
10° to 90° beam angle options suitable for various applications
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 5.85"6.66"L: Run length (Ft)
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI95
- Watt(Approx)8.6 W/Ft13.5 W/Ft18.3 W/Ft25.8 W/Ft31.2 W/Ft
- Lumens(Approx)1000 Lm/Ft1500 Lm/Ft2000 Lm/Ft2500 Lm/Ft3000 Lm/Ft
- OpticsDirectNarrowMediumFloodWide Flood
- AdjustableLock Aiming
- DimmingDim to 1%Dim to <1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VLutron Hi-lume EcoSystem (LDE1)eldoLED ECO DALIeldoLED SOLO 0-10VDMX
- Controls/Network
- Power/VoltageIntegralUNV 120-277V120V347V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesETLCSAMade in USA
- EnvironmentDamp
- Mounting TypeCeiling RecessedDrywallTrimless DrywallT-Grid CeilingWoodTrimless Wood
- HousingNew Construction
- Housing Depth6.17 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead time3GR-58RDSL
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
