Architectural Area Lighting (Current)
SLD2. Slide DECORATIVE – CATENARY.
Configure
Add to project
RESOURCES
DESCRIPTION

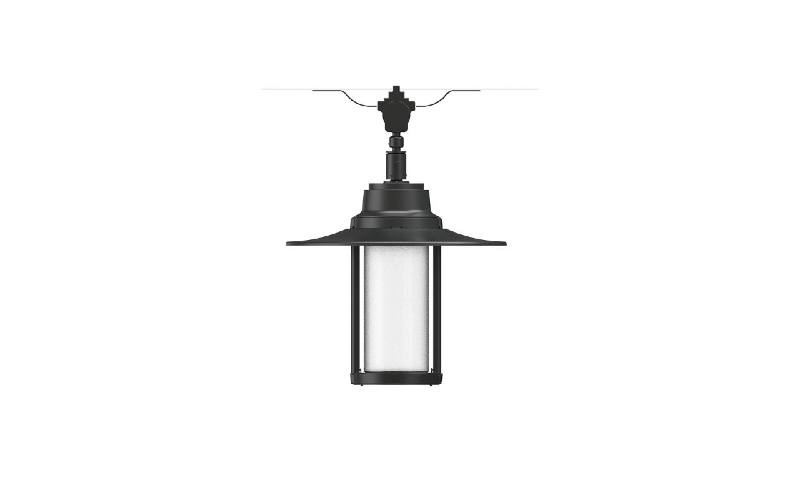

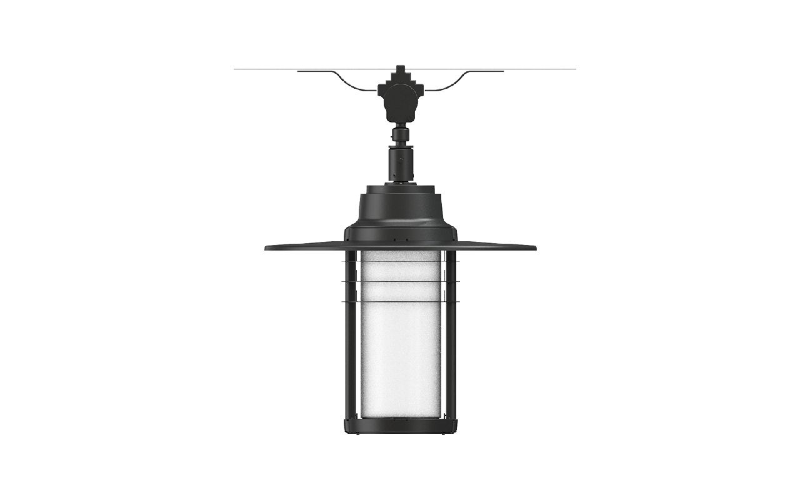

Slide catenary mount is the perfect solution for tighter spaces that doesnt allow for individual poles. The Slide can utilize a catenary mount in these applications while still adding great performance and a decorative appeal.
- Catenary luminiare perfect for plazas, common areas, and walkways
- 3 different shade options (flat, straight, or curve) as well as the ability to have no shade without affecting the performance
- A set of three rings can be included on any luminaire configuration to add visual interest or block direct view of LEDs
- Choice of 2 or 4 struts to customize based on the application preference
- Slide has been designed to offer configurations with or without a lens.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 27"L: 27"H: 27 3/4"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K5000KYellow/Amber
- CRI80 70
- Watt(Approx)25 W39 W50 W70 W90 W
- Lumens(Approx)3450 Lm5217 Lm6210 Lm7836 Lm12190 Lm
- OpticsDirectType IIType IIIType IVType V
- Adjustable
- DimmingDim to 3-10%0-10V
- Controls/NetworkIntegral Sensor
- Power/VoltageIntegralUNV 120-277V347V480V
- Integral Emergency
- Lumen Maintenance408000 h
- CertificatesUL/CULBAA
- EnvironmentIP65
- Mounting TypeCatenary
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeSLD2-CM
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
