ACDC
PLAZA R30I.
Configure
Add to project
RESOURCES
DESCRIPTION

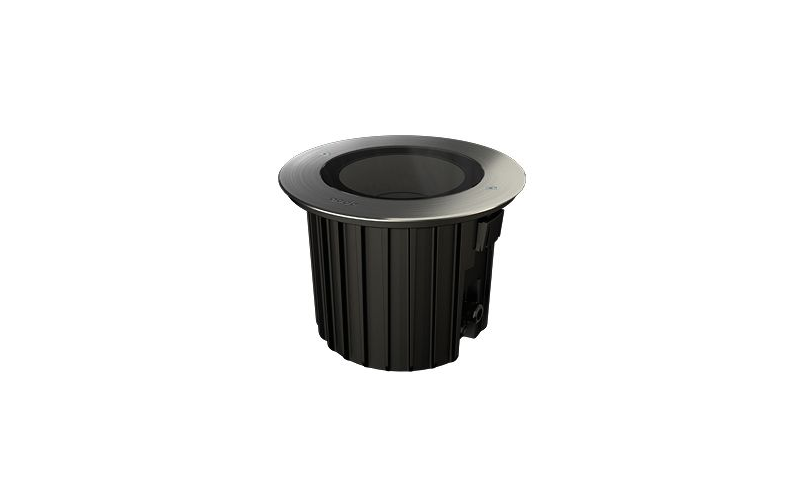

PLAZA R30i is a high output drive-over IP67 in-ground luminaire, available in 3000 lumens. Colour temperatures available; 2700K, 3000K, 4000K, Dynamic White and RGBW. *ONE Technology available*
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 10.4"L: 10.4"
- Light SourceLED
- CCT/Color2700K3000K4000KTunable WhiteRGBW
- CRI80
- Watt(Approx)31 W33 W34 W
- Lumens(Approx)1552 Lm1722 Lm1676 Lm2008 Lm1839 Lm2494 Lm2686 Lm2784 Lm2228 Lm3157 Lm
- OpticsDirectNarrowMediumFloodAsymmetric/WashRemote Adjustable
- Adjustable
- DimmingDim to 3-10%DALIDMX
- Controls/NetworkBluetooth
- Power/VoltageRemote
- Integral Emergency
- Lumen Maintenance60000 h
- Certificates
- EnvironmentIP67
- Mounting TypeIn-GradeGround
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
