A-Light (Acuity Brands Lighting)
ABI. ABSORB.
 Configure
 Add to project
DESCRIPTION

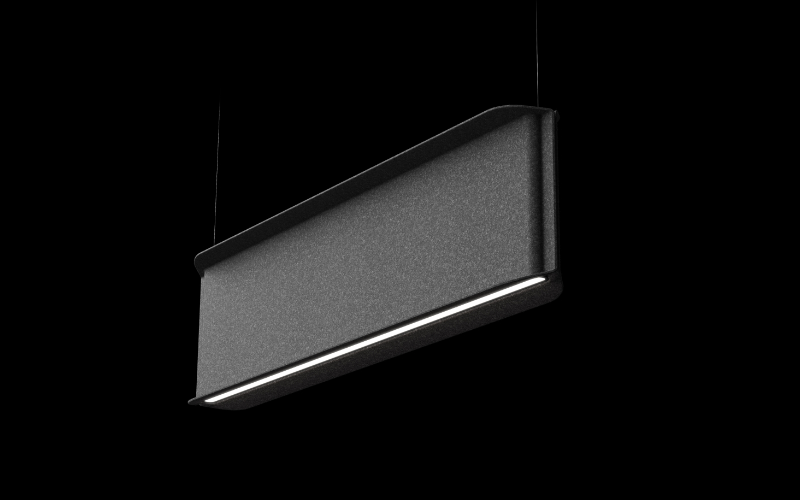

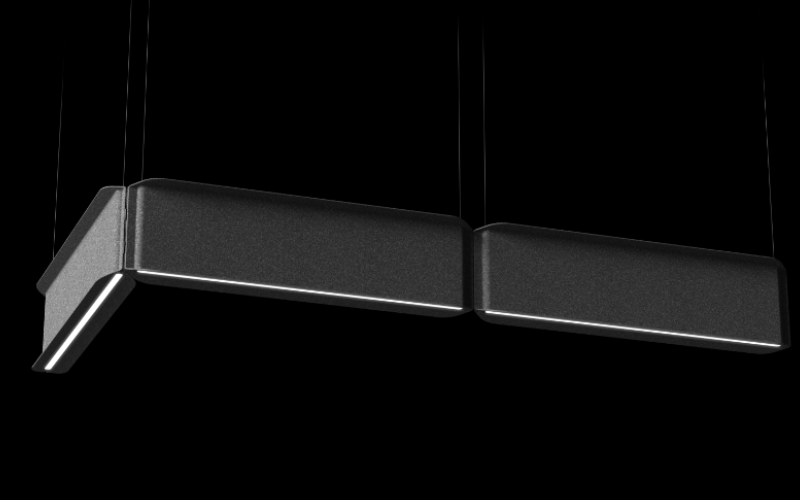

Absorb I is a suspended luminaire with vertical acoustic panels that feature flanged profile design. Available in two and four-foot lengths, Absorb I luminaires enable designers to explore their creativity. Fixtures can be combined with a discreet joiner system hidden within the luminaire's felt for seamless designs. Continuous runs, squares or rectangles can be created using 90 or 180-degree angle joiners.

Designers can choose various light distributions to achieve the desired direct or indirect illumination. Absorb I's direct lighting delivers reduced glare. Indirect optics allow for efficient and controled light. Unlit versions are also available, ideal for applications where more sound absorption is required while maintaining design consistency within a space.

Thermoformed acoustic panels, available in four standard and 26 premium colors, enable designers to define a space or complement an existing aesthetic. The polyester felt panels, manufactured with recycled plastic bottles (PET), are 100% recyclable.
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 26.65"
    L: 49.55"
    H: 13.21"
  • Light Source
    LED
  • CCT/Color
    2700K3000K3500K4000KTunable White
  • CRI
    80 90
  • Watt(Approx)
    5 W/Ft5.5 W/Ft12 W/Ft10.3 W/Ftcustom
  • Lumens(Approx)
    417 Lm/Ft599 Lm/Ft808 Lm/Ft1154 Lm/Ftcustom
  • Optics
    DirectIndirectDirect/IndirectGeneral DiffusedAsymmetric/WashBatwing
  • Adjustable
  • Dimming
    Dim to 3-10%Dim to 1%ELV/Reverse/Trailing0-10VDALILutron Hi-lume EcoSystem (LDE1)
  • Controls/Network
    nLight®Integral Sensor
  • Power/Voltage
    IntegralUNV 120-277V347V
  • Integral Emergency
    EM Integral
  • Lumen Maintenance
    60000 h
  • Certificates
    UL/CUL
  • Environment
    Acoustic AbsorptionWet
  • Mounting Type
    Pendant
  • Housing
  • Housing Depth
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
