A-Light (Acuity Brands Lighting)
ABV. Absorb.
 Configure
 Add to project

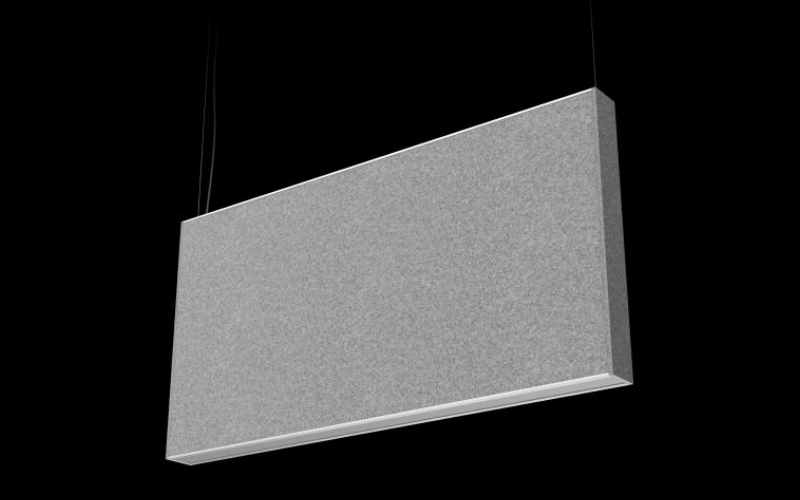

A Light. ABV1. Absorb.

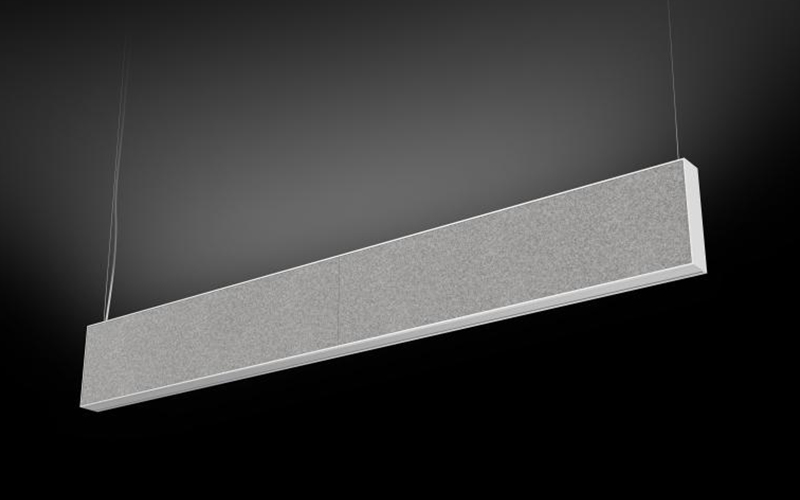

A Light. ABV. Absorb.
RESOURCES
DESCRIPTION
Absorb features vertical sound absorbing panels made of felt-like polyester made from at least 40% post-consumer recycled PET bottles and are fully recyclable. With a large surface area, the panels decrease reverberation time and have an inherent sound absorption rate of 0.75 NRC.

With surface and suspended mounting options, impressive direct-indirect distribution types, various product dimensions and 30 vibrant colors, Absorb V offers additional design choices for optimizing a space's aesthetic.
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 3.24"
    L: Run length (inch)
    H: 8"12"16"24"
  • Light Source
    LED
  • CCT/Color
    2700K2700K Dim to Warm3000K3500K4000KTunable White
  • CRI
    90 80
  • Watt(Approx)
    5 W/Ft9 W/Ft9.6 W/Ftcustom
  • Lumens(Approx)
    353 Lm/Ft456 Lm/Ft335 Lm/Ft673 Lm/Ft670 Lm/Ft912 Lm/Ftcustom
  • Optics
    IndirectGeneral DiffusedAsymmetric/Wash
  • Adjustable
  • Dimming
    Dim to 3-10%Dim to 1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALILutron Hi-lume EcoSystem (LDE1)
  • Controls/Network
    nLight®Integral Sensor
  • Power/Voltage
    IntegralUNV 120-277V347V
  • Integral Emergency
    EM Integral
  • Lumen Maintenance
    60000 h
  • Certificates
    UL/CUL
  • Environment
    Acoustic Absorption
  • Mounting Type
    Pendant
  • Housing
  • Housing Depth
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
