A-Light (Acuity Brands Lighting)
ACL1. Accoled.
Configure
Add to project
RESOURCES
DESCRIPTION

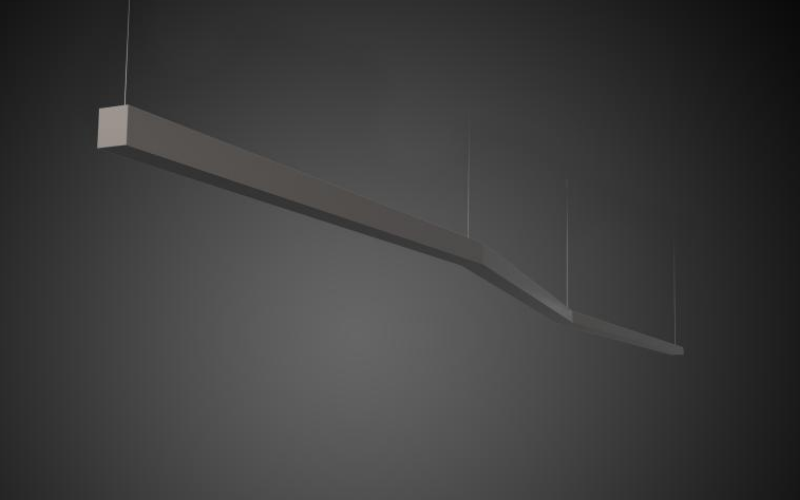

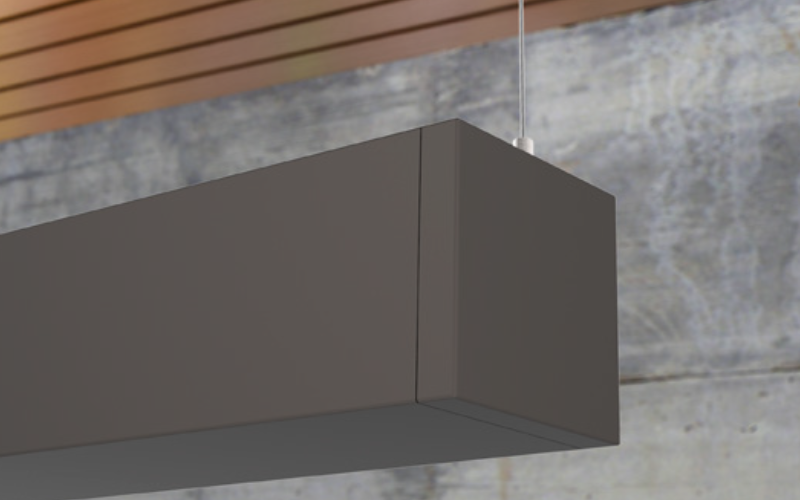

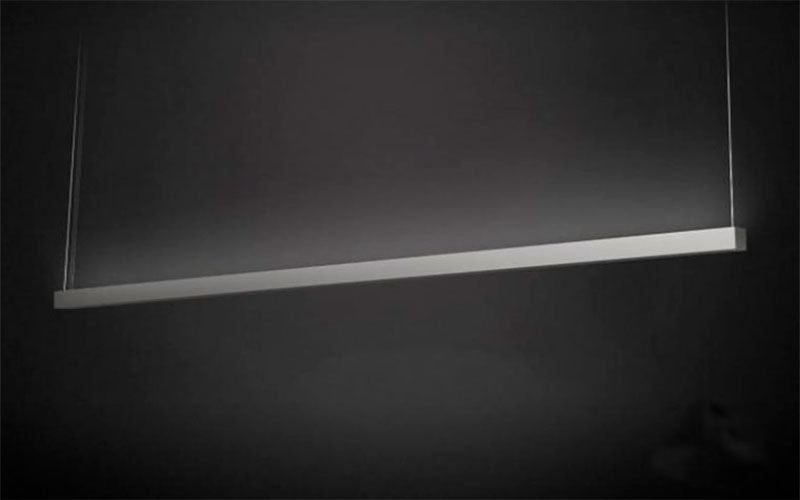

At 2.25" wide x 2.25" high, ACL1 is an optically efficient suspended indirect luminaire tailored for LED lighting technology and fully capable of achieving pattern design due to its minimal housing shape and excellent distribution. Optimized thermal performance, optical performance, and versatility in installation are provided in a functional and aesthetically pleasing slim profile.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2.25"L: Run length (Ft)H: 2.25"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI80 90
- Watt(Approx)9 W/Ft9.6 W/Ft
- Lumens(Approx)673 Lm/Ft670 Lm/Ft912 Lm/Ft
- OpticsIndirectNarrowWide FloodAsymmetric/Wash
- Adjustable
- DimmingDim to 1%0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesUL/CUL
- EnvironmentDamp
- Mounting TypePendant
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
