A-Light (Acuity Brands Lighting)
ACL3ST. ACCOLED.
Configure
Add to project
RESOURCES
DESCRIPTION

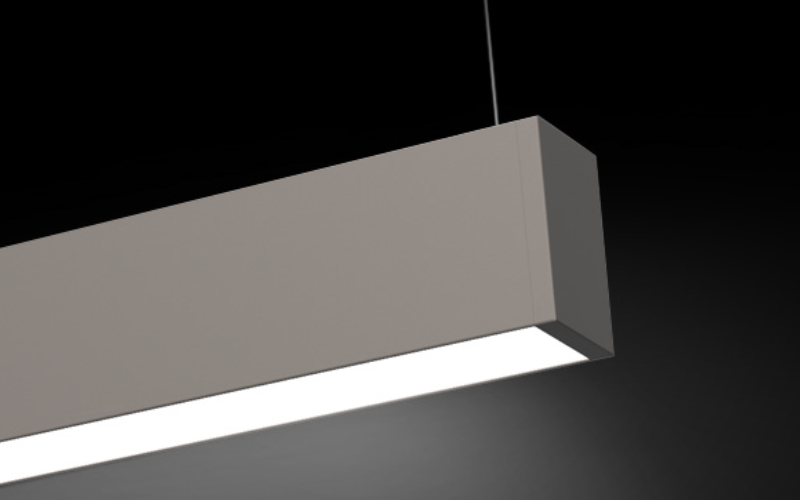

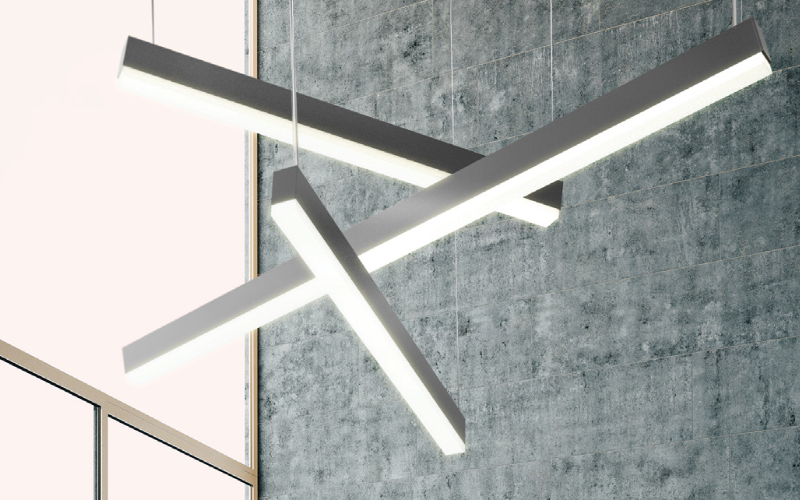

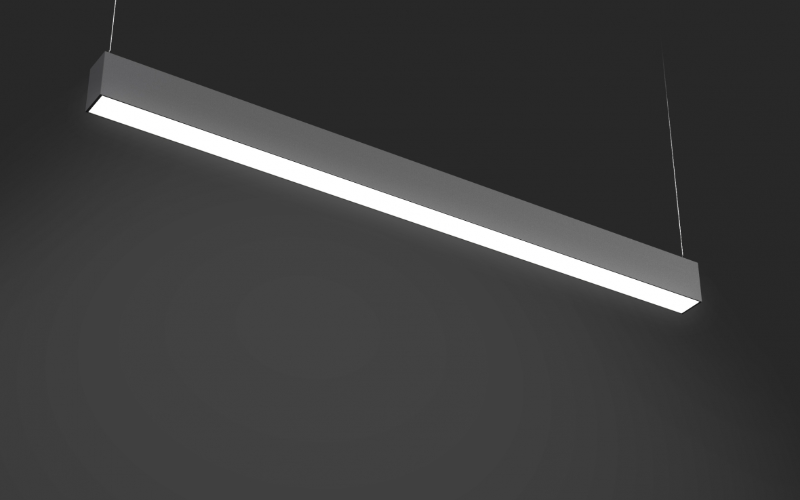

At 2.25" wide x 3.375" high, ACL3ST is a precisely designed direct luminaire tailored directly to LED lighting technology and fully capable of achieving pattern design due to its minimal housing shape, use of patented HE Tech™ lens, and excellent distribution. Optimized thermal performance, optical performance, and versatility in installation are provided in a functional and aesthetically pleasing slim profile.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2.25"L: Run length (Ft)H: 3.375"4.375"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI80 90
- Watt(Approx)9.8 W/Ft
- Lumens(Approx)843 Lm/Ft1075 Lm/Ft
- OpticsDirectGrazingGeneral DiffusedAsymmetric/WashBatwing
- Adjustable
- DimmingDim to 1%0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesUL/CULADA
- EnvironmentDamp
- Mounting TypePendantCeiling SurfaceWall Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
