A-Light (Acuity Brands Lighting)
ALD8ST. ACCOLADE.
Configure
Add to project


RESOURCES
DESCRIPTION

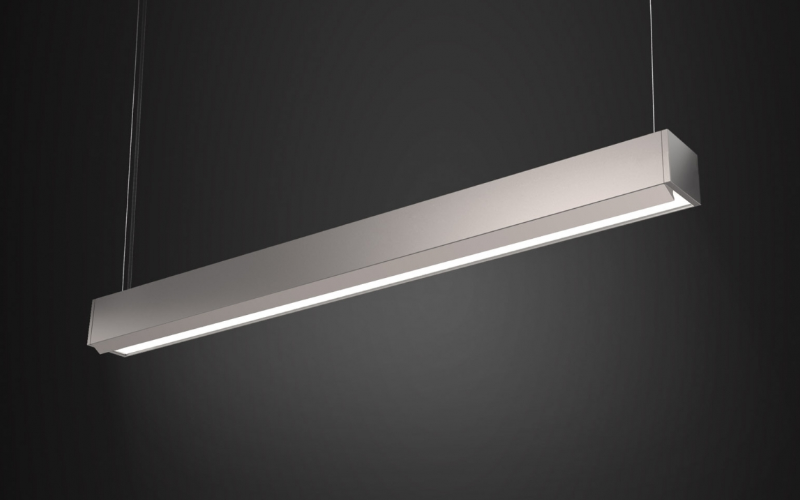

The ALD8ST is the wall wash addition to our 3-1/2" wide accolade series. A smooth wall wash distribution is achieved through combining an extended aluminum extruded kicker and HTD optic. Surface, suspended, span, and various wall mounting capabilities ensure a wide range of design application is possible.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 3.57"L: Run length (inch)H: 4.257"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI90 80
- Watt(Approx)5 W/Ft9.6 W/Ftcustom
- Lumens(Approx)288 Lm/Ft575 Lm/Ftcustom
- OpticsDirectAsymmetric/Wash
- Adjustable
- DimmingDim to 3-10%0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesUL/CULADABAA
- EnvironmentDamp
- Mounting TypePendantCeiling SurfaceWall Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeALD8ST_QS
—
