A-Light (Acuity Brands Lighting)
ALG3. ALIGN.
Configure
Add to project
RESOURCES
DESCRIPTION

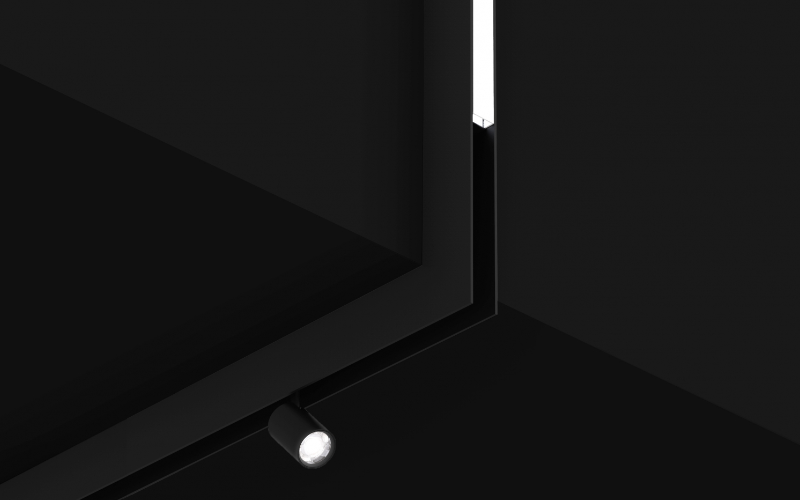

Align is an easily specifiable and highly configurable lighting system designed to accommodate the changing needs of any space. The magnetic modules come with multiple light and mounting options and, with tool-free installation and removal capabilities, the opportunity to create unique configurations are almost infinite.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 1.82"L: Run length (inch)H: 3.57"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI80 90
- Watt(Approx)6.4 W13.3 W10.2 W13 W18.2 W17 W31 W
- Lumens(Approx)336 Lm/Ft576 Lm/Ft740 Lm/Ft581 Lm/Ft877 Lm/Ft861 Lm/Ft910 Lm/Ft1131 Lm/Ft1401 Lm/Ft1365 Lm/Ft1445 Lm/Ft1139 Lm/Ft2773 Lm/Ft2766 Lm/Ft2694 Lm/Ft2705 Lm/Ft2343 Lm/Ft2339 Lm/Ft2277 Lm/Ft2285 Lm/Ft521.7 Lm/Ft643.8 Lm/Ft
- OpticsDirectMediumFloodWide FloodGeneral Diffused
- Adjustable
- DimmingDim to 1%0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesUL/CUL
- EnvironmentDamp
- Mounting TypePendantCeiling SurfaceWall SurfaceMagnetic System
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeALG3S
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
