A-Light (Acuity Brands Lighting)
AXL. Axial.
 Configure
 Add to project

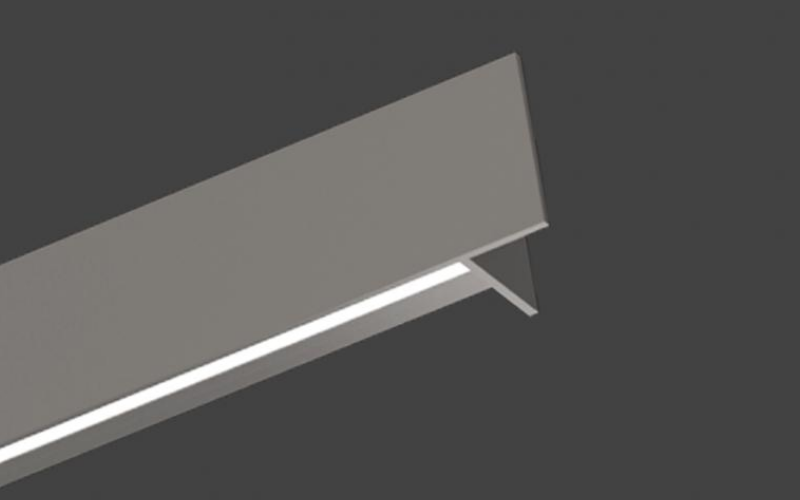

A Light. AXL. AXIAL.

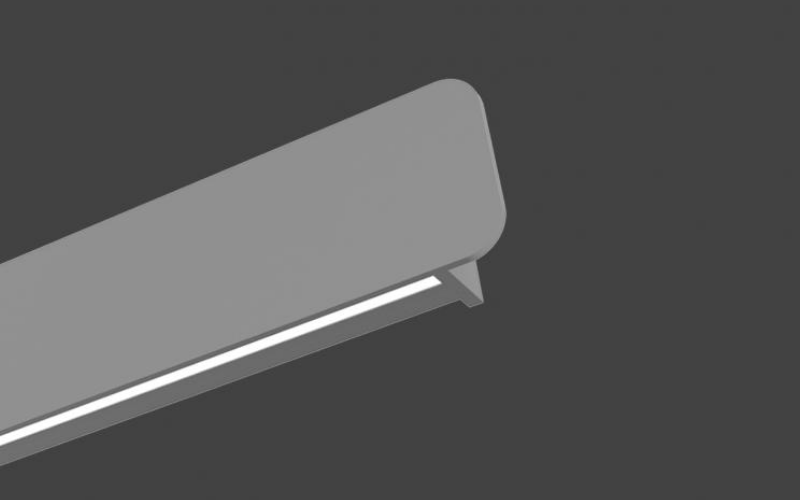

A Light. AXL. AXIAL.
RESOURCES
DESCRIPTION

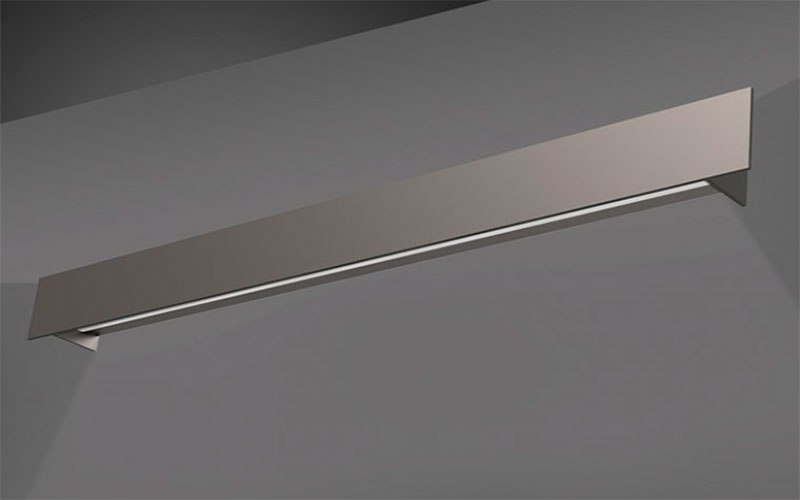

Designed precisely for LED applications. The axial is a performance ceiling wash / task light fixture that creates a horizontally oriented architectural focal point, offering a multitude of distribution variations using combinations of standard and high output in either or both, upper and lower apertures.

Elements are standard 4', 8', 12' individual fixtures that can be joined to create continuous row lengths.

Integrations enable design versatility and opens up opportunity to unify lighting and architectural design.
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 3.7"
    L: 4 Ft8 Ft12 FtRun length (Ft)
    H: 3.7"
  • Light Source
    LED
  • CCT/Color
    2700K3000K3000K Dim to Warm3500K4000KTunable White
  • CRI
    80 90
  • Watt(Approx)
    4.75 W/Ft5 W/Ft9.5 W/Ftcustom
  • Lumens(Approx)
    421 Lm/Ft335 Lm/Ft667 Lm/Ft843 Lm/Ftcustom
  • Optics
    Direct/IndirectAsymmetric/Wash
  • Adjustable
  • Dimming
    Dim to 3-10%Dim to 1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VLutron Hi-lume EcoSystem (LDE1)eldoLED ECO DALI
  • Controls/Network
    nLight®
  • Power/Voltage
    IntegralUNV 120-277V347V
  • Integral Emergency
    EM Integral
  • Lumen Maintenance
    60000 h
  • Certificates
    UL/CUL
  • Environment
    Damp
  • Mounting Type
    Wall Surface
  • Housing
  • Housing Depth
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
