A-Light (Acuity Brands Lighting)
G4. Architrave.
Configure
Add to project
RESOURCES
DESCRIPTION

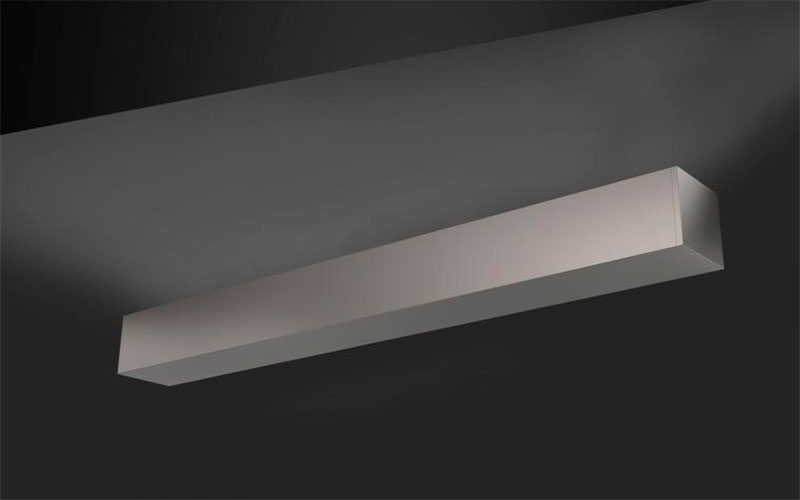

Architrave4 indirect luminaire features symmetric narrow or asymmetric distribution in a 5" x 5" square linear housing. A variety of wall surface mounting options and optional dual board configuration provide maximum performance.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 5.06"L: 4 Ft8 Ft12 FtRun length (inch)H: 5.06"
- Light SourceLED
- CCT/Color2700K3000K3500K3500K Dim to Warm4000KTunable White
- CRI80 90
- Watt(Approx)4.75 W/Ft9.5 W/Ft20 W/Ftcustom
- Lumens(Approx)462 Lm/Ft916 Lm/Ft1832 Lm/Ftcustom
- OpticsIndirectGeneral DiffusedAsymmetric/Wash
- Adjustable
- DimmingDim to 3-10%Dim to 1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VLutron Hi-lume EcoSystem (LDE1)eldoLED ECO DALI
- Controls/NetworknLight®Integral Sensor
- Power/VoltageIntegralUNV 120-277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance60000 h
- CertificatesUL/CUL
- EnvironmentMRIDampWetNatatorium
- Mounting TypeWall SurfaceSurface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeG4
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
