A-Light (Acuity Inc.)
LIN. LINO Suspended - Surface.
Configure
Add to project




RESOURCES
DESCRIPTION

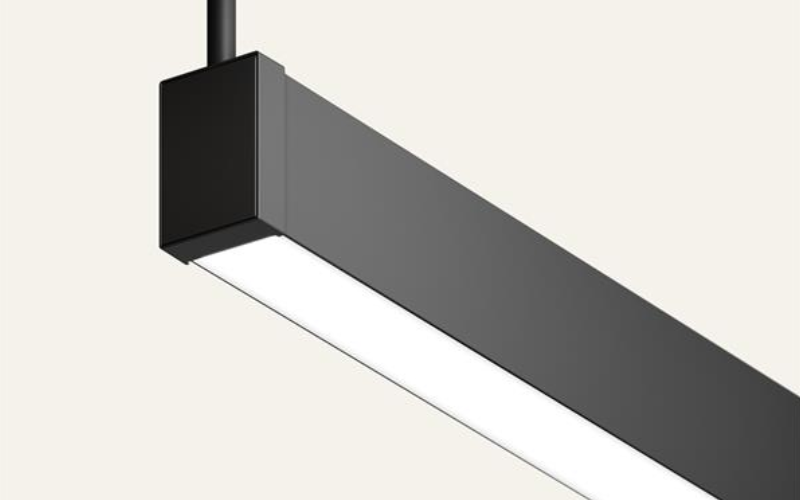

Available in 2.16” and 3” apertures, Lino’s small profile housing and no visible hardware ensure that the fixture subtly integrates into a variety of interior and exterior environments.

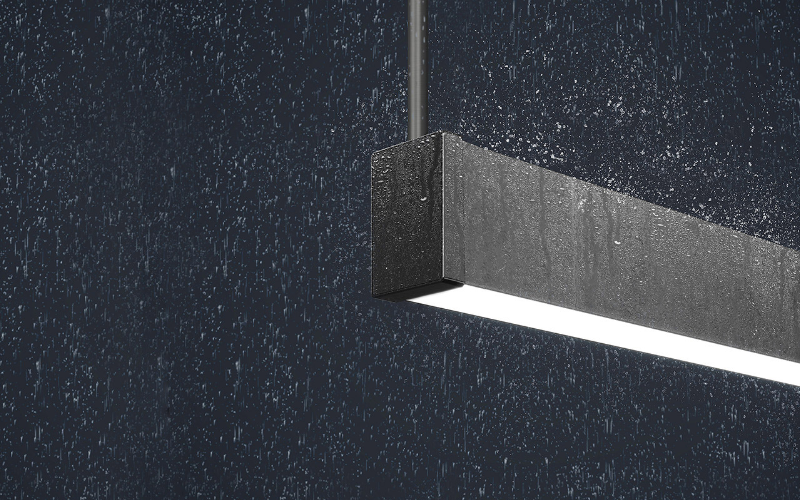

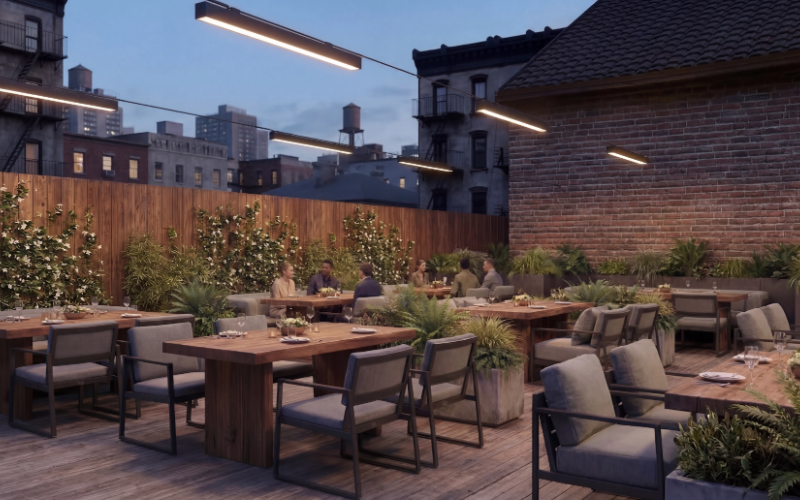

With an IP66 rating, Lino luminaires are particularly well-suited for outdoor applications with harsher weather conditions such as rain, snow, sand, or excessive dirt or dust.
Designers can mix and match from numerous suspended or surface mountings to maintain a consistent design aesthetic. Suspended mountings include catenary or pendant stem. Ceiling, wall, channel or mullion block can be selected for surface mountings.
Direct illumination is available with batwing, flat blade louver, HE Tech™, wall grazer or asymmetric distribution types, each meeting specific lighting needs. Designers may choose indirect illumination for the mullion block mounting option.
Available in up to 8-foot standard lengths, luminaires can be trimmed to specific sizes in increments of 1/8 inch. Luminaires may be joined with L-,T-, or X-corners for creative patterns. Designers may also collaborate with A-Light’s Design Assist team to create unique configurations and extended length options; the latter is achieved using a small joiner system.
Sustainability is a key element of Lino’s design, including fixtures that contain 60% recycled aluminum extrusions.
Black, white and titanium finishes are standard for Lino, but custom RAL colors are also available.
Lino luminaires are enabled with the nLight® network control system to manage lighting throughout indoor or outdoor spaces, reducing energy costs and improving occupant comfort with dim to warm and white tuning.
With an IP66 rating, Lino luminaires are particularly well-suited for outdoor applications with harsher weather conditions such as rain, snow, sand, or excessive dirt or dust.
Designers can mix and match from numerous suspended or surface mountings to maintain a consistent design aesthetic. Suspended mountings include catenary or pendant stem. Ceiling, wall, channel or mullion block can be selected for surface mountings.
Direct illumination is available with batwing, flat blade louver, HE Tech™, wall grazer or asymmetric distribution types, each meeting specific lighting needs. Designers may choose indirect illumination for the mullion block mounting option.
Available in up to 8-foot standard lengths, luminaires can be trimmed to specific sizes in increments of 1/8 inch. Luminaires may be joined with L-,T-, or X-corners for creative patterns. Designers may also collaborate with A-Light’s Design Assist team to create unique configurations and extended length options; the latter is achieved using a small joiner system.
Sustainability is a key element of Lino’s design, including fixtures that contain 60% recycled aluminum extrusions.
Black, white and titanium finishes are standard for Lino, but custom RAL colors are also available.
Lino luminaires are enabled with the nLight® network control system to manage lighting throughout indoor or outdoor spaces, reducing energy costs and improving occupant comfort with dim to warm and white tuning.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2"3"L: Run length (Ft)H: 3"
- Light SourceLED
- CCT/Color2700K2700K Dim to Warm3000K3500K4000KTunable White
- CRI80 90
- Watt(Approx)4.8 W/Ft9.6 W/Ft12.5 W/Ftcustom
- Lumens(Approx)547 Lm/Ft1300 Lm/Ft1058 Lm/Ftcustom
- OpticsDirectIndirectGrazingGeneral DiffusedAsymmetric/WashBatwing
- Adjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%0-10VDALI
- Controls/NetworknLight®Integral Sensor
- Power/VoltageIntegralUNV 120-277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance60000 h
- CertificatesCSAADA
- EnvironmentIP66Natatorium
- Mounting TypePendantCeiling SurfaceWall SurfaceCatenary
- Housing
- Housing Depth
