A-Light (Acuity Brands Lighting)
LIN. Lino MULL.
 Configure
 Add to project
DESCRIPTION

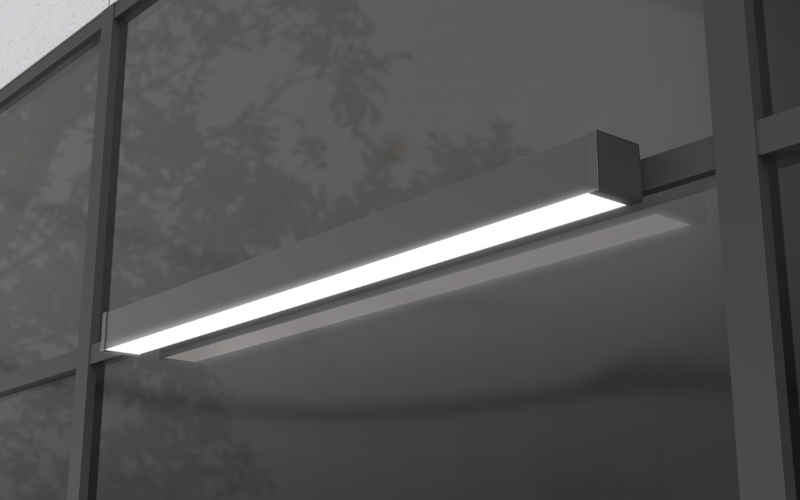

Available in 2” and 3” apertures, Lino’s small profile housing and no visible hardware ensure that the fixture subtly integrates into a variety of interior and exterior environments.

With an IP66 rating, Lino luminaires are particularly well-suited for outdoor applications with harsher weather conditions such as rain, snow, sand, or excessive dirt or dust.

Designers can mix and match from numerous mounting types, including a mullion block.

Direct illumination is available with batwing, flat blade louver, HE Tech™, wall grazer or asymmetric distribution types, each meeting specific lighting needs. Designers may choose indirect illumination for the mullion block mounting option.

Available in up to 8-foot standard lengths, luminaires can be trimmed to specific sizes in increments of 1/8 inch.

Black, white and titanium finishes are standard for Lino, but custom RAL colors are also available.

Lino luminaires may be selected with an occupancy sensor. They are enabled for the nLight® network control system to manage lighting throughout indoor or outdoor spaces, reducing energy costs and improving occupant comfort with dim to warm, white tuning, and RGBW.
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 2"3"
    L: Run length (Ft)
    H: 3"
  • Light Source
    LED
  • CCT/Color
    2700K2700K Dim to Warm3000K3500K4000KTunable White
  • CRI
    80 90
  • Watt(Approx)
    4.8 W/Ft9.6 W/Ft12.5 W/Ftcustom
  • Lumens(Approx)
    547 Lm/Ft1300 Lm/Ft1058 Lm/Ftcustom
  • Optics
    DirectIndirectGrazingGeneral DiffusedAsymmetric/WashBatwing
  • Adjustable
  • Dimming
    Dim to 1%Dim to <1%0-10VDALI
  • Controls/Network
    nLight®Integral Sensor
  • Power/Voltage
    IntegralUNV 120-277V347V
  • Integral Emergency
    EM Integral
  • Lumen Maintenance
    60000 h
  • Certificates
    CSAADA
  • Environment
    IP66Natatorium
  • Mounting Type
    Wall Surface
  • Housing
  • Housing Depth
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
