A-Light (Acuity Brands Lighting)
LIN5. LINO RECESSED.
Configure
Add to project




RESOURCES
DESCRIPTION

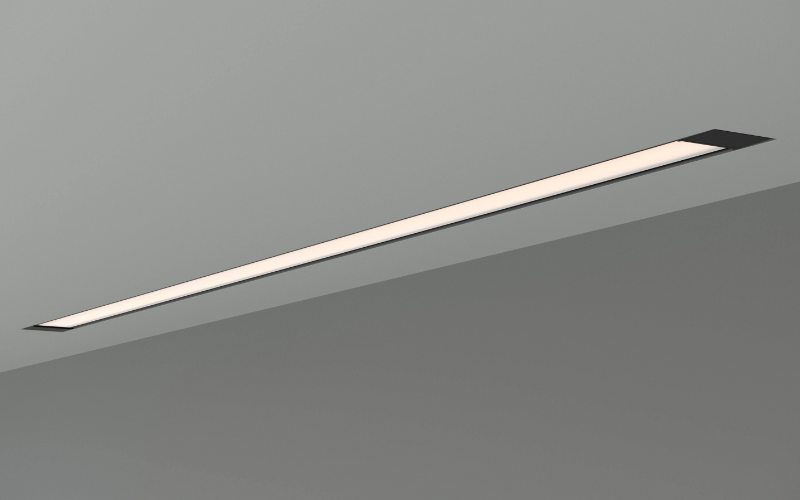

Available in 2” and 3” apertures, Lino’s small profile housing and no visible hardware ensure that the fixture subtly integrates into a variety of interior and exterior environments.
With an IP66 rating, Lino luminaires are particularly well-suited for outdoor applications with harsher weather conditions such as rain, snow, sand, or excessive dirt or dust.
Designers can mix and match from numerous mounting types. Recessed mountings are available in trimless or trim flange.
Direct illumination is available with batwing, flat blade louver, HE Tech™, wall grazer or asymmetric distribution types, each meeting specific lighting needs. Designers may choose indirect illumination for the mullion block mounting option.
Available in up to 8-foot standard lengths, luminaires can be trimmed to specific sizes in increments of 1/8 inch.
Black, white and titanium finishes are standard for Lino, but custom RAL colors are also available.
Lino luminaires may be selected with an occupancy sensor. They are enabled for the nLight® network control system to manage lighting throughout indoor or outdoor spaces, reducing energy costs and improving occupant comfort with dim to warm, white tuning, and RGBW.
With an IP66 rating, Lino luminaires are particularly well-suited for outdoor applications with harsher weather conditions such as rain, snow, sand, or excessive dirt or dust.
Designers can mix and match from numerous mounting types. Recessed mountings are available in trimless or trim flange.
Direct illumination is available with batwing, flat blade louver, HE Tech™, wall grazer or asymmetric distribution types, each meeting specific lighting needs. Designers may choose indirect illumination for the mullion block mounting option.
Available in up to 8-foot standard lengths, luminaires can be trimmed to specific sizes in increments of 1/8 inch.
Black, white and titanium finishes are standard for Lino, but custom RAL colors are also available.
Lino luminaires may be selected with an occupancy sensor. They are enabled for the nLight® network control system to manage lighting throughout indoor or outdoor spaces, reducing energy costs and improving occupant comfort with dim to warm, white tuning, and RGBW.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2.16"2.82"3.16"3.82"L: Run length (Ft)
- Light SourceLED
- CCT/Color2700K2700K Dim to Warm3000K3500K4000KTunable WhiteRGBW
- CRI80 90
- Watt(Approx)5 W/Ft12.5 W/Ft10.5 W/Ftcustom
- Lumens(Approx)556 Lm/Ft1326 Lm/Ft1071 Lm/Ftcustom
- OpticsDirectGrazingGeneral DiffusedAsymmetric/WashBatwing
- Adjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%0-10VDALIDMX
- Controls/NetworknLight®Integral Sensor
- Power/VoltageIntegralUNV 120-277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance60000 h
- CertificatesCSA
- EnvironmentIP66Natatorium
- Mounting TypeCeiling RecessedDrywallTrimless Drywall
- HousingNew Construction
- Housing Depth3 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
