A-Light (Acuity Brands Lighting)
LIN. Lino SURFACE.
Configure
Add to project



RESOURCES
DESCRIPTION

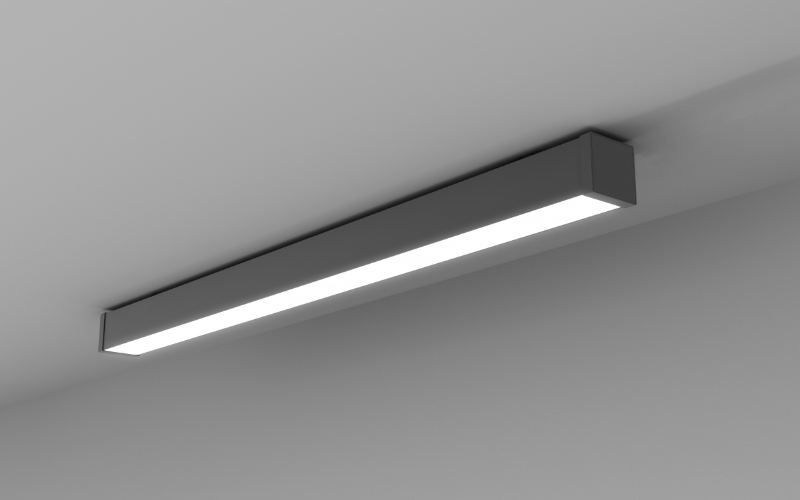

Available in 2” and 3” apertures, Lino’s small profile housing and no visible hardware ensure that the fixture subtly integrates into a variety of interior and exterior environments.
With an IP66 rating, Lino luminaires are particularly well-suited for outdoor applications with harsher weather conditions such as rain, snow, sand, or excessive dirt or dust.
Designers can mix and match with numerous mounting types. Surface mounting includes wall or channel.
Direct illumination is available with batwing, flat blade louver, HE Tech™, wall grazer or asymmetric distribution types, each meeting specific lighting needs.
Available in up to 8-foot standard lengths, luminaires can be trimmed to specific sizes in increments of 1/8 inch. Luminaires may be joined with L-,T-, or X-corners for creative patterns. Designers may also collaborate with A-Light’s Design Assist team to create unique configurations and extended length options; the latter is achieved using a small joiner system.
Black, white and titanium finishes are standard for Lino, but custom RAL colors are also available.
Lino luminaires may be selected with an occupancy sensor. They are enabled for the nLight® network control system to manage lighting throughout indoor or outdoor spaces, reducing energy costs and improving occupant comfort with dim to warm, white tuning, and RGBW.
With an IP66 rating, Lino luminaires are particularly well-suited for outdoor applications with harsher weather conditions such as rain, snow, sand, or excessive dirt or dust.
Designers can mix and match with numerous mounting types. Surface mounting includes wall or channel.
Direct illumination is available with batwing, flat blade louver, HE Tech™, wall grazer or asymmetric distribution types, each meeting specific lighting needs.
Available in up to 8-foot standard lengths, luminaires can be trimmed to specific sizes in increments of 1/8 inch. Luminaires may be joined with L-,T-, or X-corners for creative patterns. Designers may also collaborate with A-Light’s Design Assist team to create unique configurations and extended length options; the latter is achieved using a small joiner system.
Black, white and titanium finishes are standard for Lino, but custom RAL colors are also available.
Lino luminaires may be selected with an occupancy sensor. They are enabled for the nLight® network control system to manage lighting throughout indoor or outdoor spaces, reducing energy costs and improving occupant comfort with dim to warm, white tuning, and RGBW.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2"3"L: Run length (Ft)H: 3"
- Light SourceLED
- CCT/Color2700K2700K Dim to Warm3000K3500K4000KTunable White
- CRI80 90
- Watt(Approx)4.8 W/Ft9.6 W/Ft12.5 W/Ftcustom
- Lumens(Approx)547 Lm/Ft1300 Lm/Ft1058 Lm/Ftcustom
- OpticsDirectIndirectGrazingGeneral DiffusedAsymmetric/WashBatwing
- Adjustable
- DimmingDim to 1%Dim to <1%0-10VDALI
- Controls/NetworknLight®Integral Sensor
- Power/VoltageIntegralUNV 120-277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance60000 h
- CertificatesCSAADA
- EnvironmentIP66Natatorium
- Mounting TypeCeiling SurfaceWall Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
LIN-SUR
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for detailsBUILD CATALOG NUMBER
