A-Light (Acuity Brands Lighting)
MIRA. SYMMETRIC Direct.
Configure
Add to project
RESOURCES
DESCRIPTION

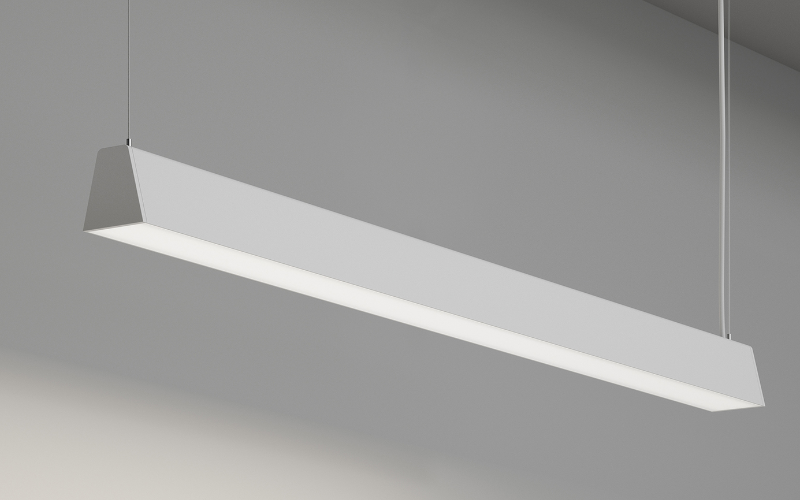

A pendant version of Mira with symmetric light distribution is also offered. It is available with indirect batwing illumination and direct Lambertian illumination, each delivering up to 1153 lumens per foot.

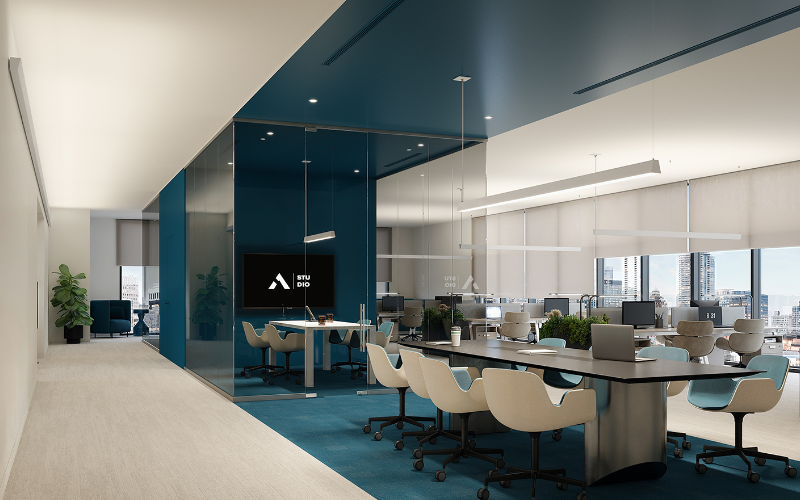

Mira luminaires feature a slim, angled profile for a contemporary look that enhances a variety of surroundings. Designers can play with different mountings and distributions, making it a good fit for the perimeter of a room, along a corridor, or in more open spaces. As a ceiling mount, for example, Mira enables even wall illumination without the need for a cove.
The exterior finish may be white, black, titanium, or a custom color or RAL number.
These fixtures are enabled with the nLight® AIR network control system to manage lighting throughout indoor spaces, reducing energy costs and improving occupant comfort with dim to warm and white tuning.
Mira is assembled in America and complies with the Buy America(n) Act (BAA) government procurement requirements under FAR, DFARS, and DOT.
Mira luminaires feature a slim, angled profile for a contemporary look that enhances a variety of surroundings. Designers can play with different mountings and distributions, making it a good fit for the perimeter of a room, along a corridor, or in more open spaces. As a ceiling mount, for example, Mira enables even wall illumination without the need for a cove.
The exterior finish may be white, black, titanium, or a custom color or RAL number.
These fixtures are enabled with the nLight® AIR network control system to manage lighting throughout indoor spaces, reducing energy costs and improving occupant comfort with dim to warm and white tuning.
Mira is assembled in America and complies with the Buy America(n) Act (BAA) government procurement requirements under FAR, DFARS, and DOT.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2.95”L: Run length (Ft)H: 3.05”
- Light SourceLED
- CCT/Color2700K3000K3500K4000KTunable White
- CRI80 90
- Watt(Approx)2.8 W/Ft5 W/Ft11 W/Ft
- Lumens(Approx)346 Lm/Ft450 Lm/Ft597 Lm/Ft750 Lm/Ft900 Lm/Ft1152 Lm/Ft
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%0-10VDALI
- Controls/NetworknLight®
- Power/VoltageIntegralUNV 120-277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance60000 h
- CertificatesUL/CULBAA
- EnvironmentDamp
- Mounting TypePendant
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeMIRA-SYM-DIR
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
